Part Image

MC14042BDG - onsemi

Description: Obsolete - Hex Buffer

Download MC14042BDG Model

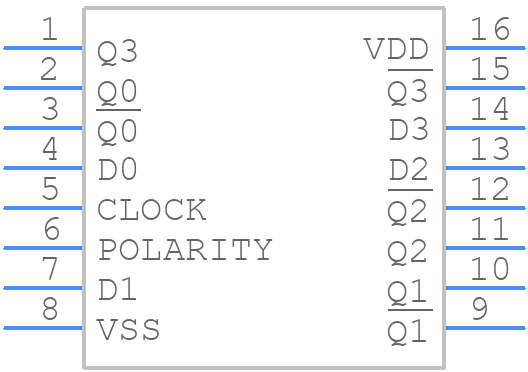

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC14042BDG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−16 9.90x3.90x1.50 1.27P PACKAGE
click to zoom
3D Models
MC14042BDG - onsemi  - 3D model - Small Outline Packages - SOIC−16 9.90x3.90x1.50 1.27P PACKAGE
click to zoom

MC14042BDG Details

  • Manufacturer Part Number:

    MC14042BDG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC 16 LEAD

  • Pin Count:

    16

  • Manufacturer Package Code:

    751B-05

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    D LATCH

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    RAIL

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    440 ns

  • Propagation Delay (tpd):

    440 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    HIGH LEVEL

  • Width:

    3.9 mm

MC14042BDG Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC14042BDG is 3.0V to 18V, although it can operate up to 20V with reduced performance.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and the VEE pin to a stable voltage source or ground, depending on the application. Also, ensure that the input voltage levels are within the recommended range.
  • The maximum frequency of operation for the MC14042BDG is typically around 10MHz, although this can vary depending on the specific application and operating conditions.
  • To handle thermal considerations, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and avoid operating the device at high temperatures (above 125°C) for extended periods.
  • The MC14042BDG has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing, and to use ESD protection devices on the PCB if necessary.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC14042BDG Overview

Use the download button to access the MC14042BDG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC140, or try a keyword search, such as FF/Latches

Parts related to MC14042BDG

Showing 0 results

MC14042BDG Alternates

Showing results

Image Part Number Model
Part Image MC14042BD onsemi

D Latch, 4000/14000/40000 Series, 1-Func, High Level Triggered, 4-Bit, Complementary Output, CMOS, PDSO16
