MC14051BCP - Motorola

Description: Analog Multiplexer, Single, 8 Channel, 16 Pin, Plastic, DIP

Download MC14051BCP Model

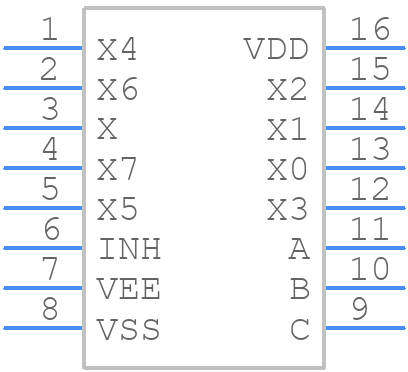

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC14051BCP - Motorola PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PLASTIC PACKAGE CASE 648–08
click to zoom
3D Models
MC14051BCP - Motorola  - 3D model - Dual-In-Line Packages - PLASTIC PACKAGE CASE 648–08
click to zoom

MC14051BCP Details

  • Manufacturer Part Number:

    MC14051BCP

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    PLASTIC, DIP-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Motorola Semiconductor Products

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e0

  • Length:

    19.175 mm

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    50 dB

  • On-state Resistance Match-Nom:

    10 Ω

  • On-state Resistance-Max (Ron):

    280 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.44 mm

  • Signal Current-Max:

    0.025 A

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Switch-off Time-Max:

    280 ns

  • Switch-on Time-Max:

    280 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

MC14051BCP Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC14051BCP is 3.0V to 18V.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 0.1uF capacitor to ground. Also, connect the VEE pin to a stable voltage source or ground, depending on the application.
  • The maximum frequency of operation for the MC14051BCP is 10MHz.
  • To handle thermal considerations, ensure good heat dissipation by providing adequate airflow, using a heat sink if necessary, and keeping the device away from heat sources.
  • The maximum power dissipation for the MC14051BCP is 625mW.
