MC14060BCP - onsemi

Description: Counter Shift Registers 3-18V 14-Stage

Download MC14060BCP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

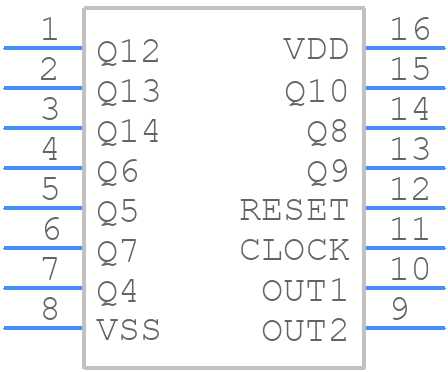

Symbol
MC14060BCP - onsemi - PCB symbol
click to zoom
PCB Footprints
MC14060BCP - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP−16 P SUFFIX PLASTIC DIP PACKAGE CASE 648−08 ISSUE T
click to zoom
3D Models
MC14060BCP - onsemi - 3D model - Dual-In-Line Packages - PDIP−16 P SUFFIX PLASTIC DIP PACKAGE CASE 648−08 ISSUE T
click to zoom

MC14060BCP Details

  • Manufacturer Part Number:

    MC14060BCP

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    DIP-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Count Direction:

    UP

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e0

  • Length:

    19.175 mm

  • Load Capacitance (CL):

    50 pF

  • Load/Preset Input:

    NO

  • Logic IC Type:

    BINARY COUNTER

  • Max Frequency@Nom-Sup:

    3500000 Hz

  • Max I(ol):

    0.004200000000000001 A

  • Mode of Operation:

    ASYNCHRONOUS

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    RAIL

  • Peak Reflow Temperature (Cel):

    235

  • Prop. Delay@Nom-Sup:

    740 ns

  • Propagation Delay (tpd):

    740 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.44 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Trigger Type:

    NEGATIVE EDGE

  • Width:

    7.62 mm

  • fmax-Min:

    12 MHz

MC14060BCP Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC14060BCP is 4.5V to 18V, although it can operate up to 20V with reduced performance.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 0.1uF capacitor to ground. Also, ensure the input signals are within the recommended voltage range.
  • The maximum frequency of operation for the MC14060BCP is typically 10MHz, but it can be higher depending on the specific application and operating conditions.
  • To handle thermal considerations, ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device at maximum power dissipation for extended periods.
  • Yes, to minimize noise and ensure proper operation, keep the input and output traces short and separate, use a ground plane, and avoid running signals under the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC14060BCP Overview

Use the download button to access the MC14060BCP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC140, or try a keyword search, such as Counters
