MC14068BCP - Motorola

Description: Logic Circuit, 8-Input NAND, CMOS, 14 Pin, Plastic, DIP

Download MC14068BCP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

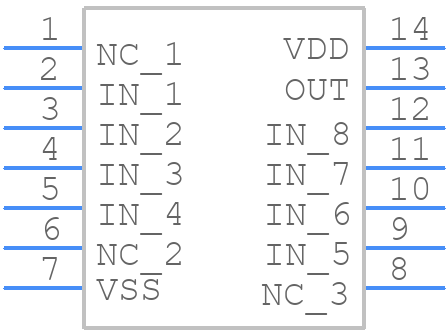

MC14068BCP - Motorola - PCB symbol
click to zoom
PCB Footprints

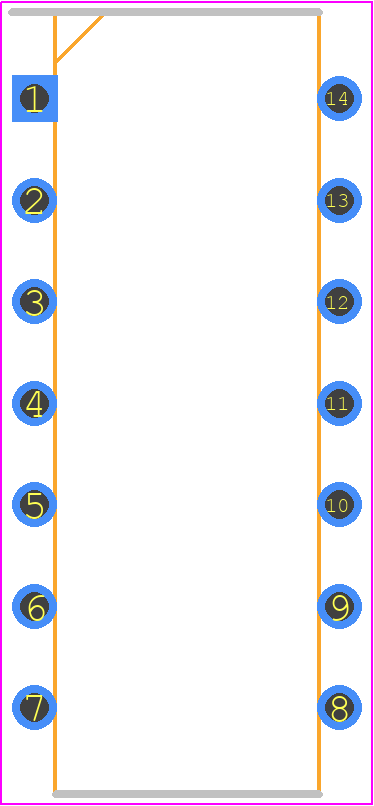

MC14068BCP - Motorola PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PLASTIC DIP PACKAGE CASE 646–06 ISSUE L
click to zoom
3D Models
MC14068BCP - Motorola - 3D model - Dual-In-Line Packages - PLASTIC DIP PACKAGE CASE 646–06 ISSUE L
click to zoom

MC14068BCP Details

  • Manufacturer Part Number:

    MC14068BCP

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PLASTIC, DIP-14

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Motorola Semiconductor Products

  • YTEOL:

    0

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e0

  • Length:

    18.86 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    NAND GATE

  • Number of Functions:

    1

  • Number of Inputs:

    8

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Prop. Delay@Nom-Sup:

    350 ns

  • Propagation Delay (tpd):

    350 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    4.69 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

MC14068BCP Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC14068BCP is 4.5V to 18V, although it can operate up to 20V with reduced performance.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 0.1uF capacitor to ground. Also, connect the VEE pin to a stable voltage source or ground, depending on the application.
  • The maximum power dissipation of the MC14068BCP is 500mW, and it is recommended to keep the junction temperature below 150°C to ensure reliable operation.
  • No, the MC14068BCP is not designed to be used as a voltage regulator. It is a quad operational amplifier with a high input impedance and low output impedance, making it suitable for signal amplification and conditioning applications.
  • To prevent electrostatic discharge (ESD) damage, handle the MC14068BCP with an anti-static wrist strap or mat, and avoid touching the pins or leads. Also, ensure that the device is stored in an anti-static bag or tube.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC14068BCP Overview

Use the download button to access the MC14068BCP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC140, or try a keyword search, such as Gates
