MC14069UBCP - Motorola

Description: • Supply Voltage Range = 3.0 Vdc to 18 Vdc • Capable of Driving Two Low–Power TTL Loads or One Low–Powe

Download MC14069UBCP Model

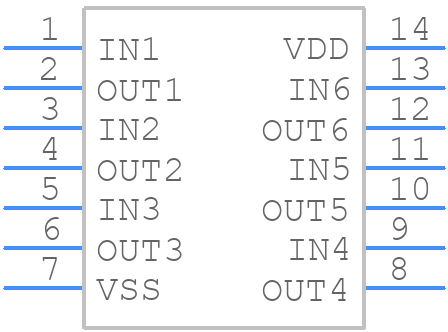

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

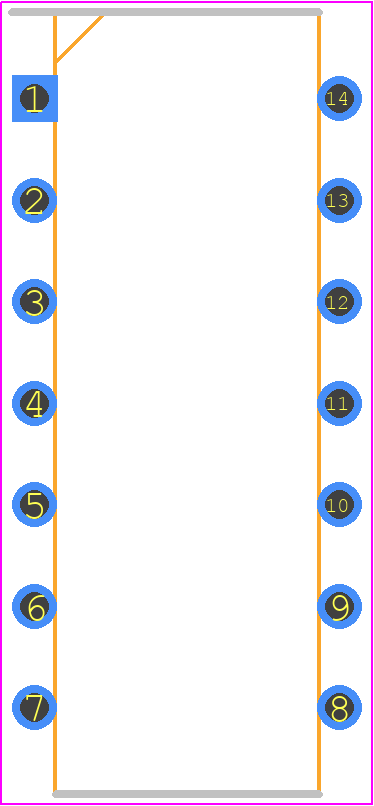

MC14069UBCP - Motorola PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P SUFFIX PLASTIC DIP PACKAGE CASE 646–06 ISSUE L
click to zoom
3D Models
MC14069UBCP - Motorola  - 3D model - Dual-In-Line Packages - P SUFFIX PLASTIC DIP PACKAGE CASE 646–06 ISSUE L
click to zoom

MC14069UBCP Details

  • Manufacturer Part Number:

    MC14069UBCP

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    PLASTIC, DIP-14

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Motorola Semiconductor Products

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e0

  • Length:

    18.86 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    INVERTER

  • Number of Functions:

    6

  • Number of Inputs:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Propagation Delay (tpd):

    125 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.69 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm
