Description:Useful for Serial-to-Parallel Data Conversion; Pin-for-Pin Compatible with CD4094B; Data Latch; Input Diode Protection; Dual Outputs for Data Out on Both Positive and Negative Clock Transitions; Capable of Driving Two Low-Power TTL Loads or One Low-Power Schottky TTL Load Over the Rated Temperature Range; Three-State Outputs; Pb-Free Packages are Available*
The recommended operating voltage range for the MC14094BDR2G is 4.5V to 18V, although it can operate up to 20V with reduced performance.
To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 0.1uF capacitor to ground. Additionally, connect the VEE pin to a stable voltage source or ground, depending on the application.
The maximum power dissipation for the MC14094BDR2G is 625mW, and it's essential to ensure the device operates within this limit to prevent overheating and damage.
While the MC14094BDR2G is not designed for high-frequency applications, it can operate up to 10MHz. However, it's essential to consider the device's bandwidth, slew rate, and propagation delay when designing high-frequency circuits.
To prevent electrostatic discharge (ESD) damage, handle the MC14094BDR2G by the body, avoid touching the pins, and use an anti-static wrist strap or mat. Also, ensure the PCB design includes ESD protection components, such as TVS diodes or ESD arrays.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC14094BDR2G Overview

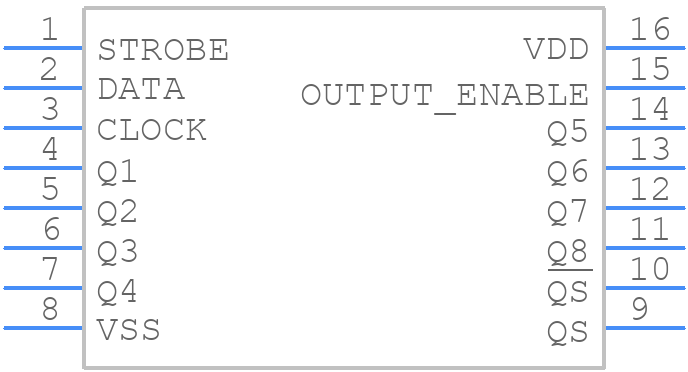

Use the download button to access the MC14094BDR2G schematic symbol, PCB footprint, and 3D model.
