MC1413DR2G - onsemi

Description: Darlington Transistors High Voltage High Current Darlington

Download MC1413DR2G Model

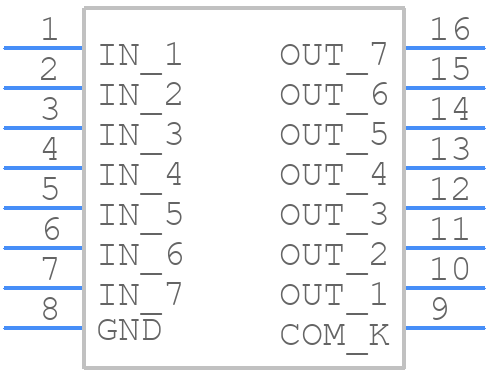

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC1413DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-16 CASE751B-05
click to zoom
3D Models
MC1413DR2G - onsemi  - 3D model - Small Outline Packages - SOIC-16 CASE751B-05
click to zoom

MC1413DR2G Details

  • Manufacturer Part Number:

    MC1413DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC 16 LEAD

  • Pin Count:

    16

  • Manufacturer Package Code:

    751B-05

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Additional Feature:

    LOGIC LEVEL COMPATIBLE

  • Collector Current-Max (IC):

    0.5 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    COMPLEX

  • DC Current Gain-Min (hFE):

    1000

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    7

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

MC1413DR2G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC1413DR2G is 4.5V to 18V.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 5 ohms.
  • The maximum output current that the MC1413DR2G can provide is 1.5A.
  • To protect the MC1413DR2G from overheating, ensure that the device is mounted on a heat sink with a thermal resistance of less than 10°C/W, and that the ambient temperature is within the recommended operating range.
  • Yes, the MC1413DR2G is suitable for high-reliability applications, such as automotive, industrial, and medical devices, due to its high reliability and robust design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC1413DR2G Overview

Use the download button to access the MC1413DR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC141, or try a keyword search, such as Power Bipolar Transistors

Parts related to MC1413DR2G

Showing 0 results

MC1413DR2G Alternates

Showing results

Image Part Number Model
Part Image ULQ2004L Sanken Electric Co Ltd

Buffer/Inverter Based Peripheral Driver, 7 Driver, PDSO16

Part Image MC1413BDR2 onsemi

Power Bipolar Transistor, 0.5A I(C), 50V V(BR)CEO, 7-Element, NPN, Silicon, Plastic/Epoxy, 16 Pin

Part Image MC1413DR2 onsemi

Power Bipolar Transistor, 0.5A I(C), 50V V(BR)CEO, 7-Element, NPN, Silicon, Plastic/Epoxy, 16 Pin

Part Image MC1416BD onsemi

Power Bipolar Transistor, 0.5A I(C), 50V V(BR)CEO, 7-Element, NPN, Silicon, Plastic/Epoxy, 16 Pin

Part Image MC1416D onsemi

Power Bipolar Transistor, 0.5A I(C), 50V V(BR)CEO, 7-Element, NPN, Silicon, Plastic/Epoxy, 16 Pin

For a full list of alternate parts for MC1413DR2G, check out Findchips.com
