- Part Number MC14489BDW
- Manufacturer NXP
- Pin Count 20
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - DW SUFFIX SOG PACKAGE CASE 751D–04
- Released Date Aug 11, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MC14489BDW Details
-
Manufacturer Part Number:
MC14489BDW
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
0
-
Interface IC Type:
LED DISPLAY DRIVER
-
Peak Reflow Temperature (Cel):
220
-
Time@Peak Reflow Temperature-Max (s):
30
MC14489BDW Frequently Asked Questions (FAQs)
-
The recommended operating voltage range for the MC14489BDW is 4.5V to 5.5V, with a typical voltage of 5V.
-
To ensure reliable communication, use proper PCB layout techniques, add noise filtering capacitors, and consider using a common-mode choke or ferrite bead to reduce electromagnetic interference (EMI).
-
The MC14489BDW supports a maximum data transfer rate of 1 Mbps in asynchronous mode and 2 Mbps in synchronous mode.
-
While the MC14489BDW can operate at 3.3V, it's not recommended as it may not meet the required specifications. The device is optimized for 5V operation, and using it at 3.3V may result in reduced performance or reliability issues.
-
To handle clock skew and jitter, use a high-quality clock source, ensure proper PCB layout, and consider using a clock buffer or jitter attenuator to reduce clock signal degradation.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
MC14489BDW Overview

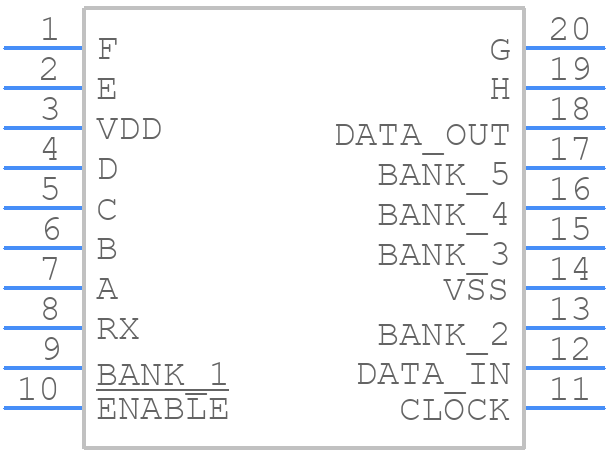

Use the download button to access the MC14489BDW schematic symbol, PCB footprint, and 3D model.
