MC14503BCP - Motorola

Description: Driver/Buffer Device, Dual, 16 Pin, Plastic, DIP

Download MC14503BCP Model

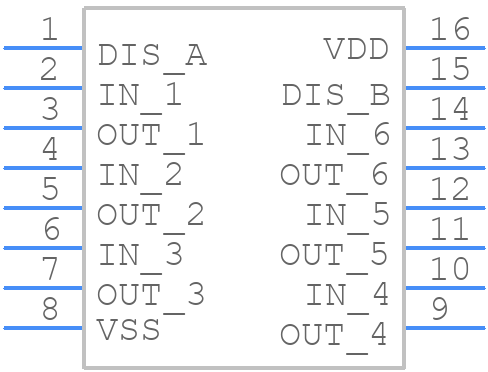

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC14503BCP - Motorola PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - MC14503BCP
click to zoom
3D Models
MC14503BCP - Motorola  - 3D model - Dual-In-Line Packages - MC14503BCP
click to zoom

MC14503BCP Details

  • Manufacturer Part Number:

    MC14503BCP

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    PLASTIC, DIP-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Motorola Semiconductor Products

  • Additional Feature:

    ONE FUNCTION WITH TWO BITS; IOH = 3MA @ VOH = 2.5V

  • Control Type:

    ENABLE LOW

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e0

  • Length:

    19.175 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.0022 A

  • Number of Bits:

    6

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Prop. Delay@Nom-Sup:

    150 ns

  • Propagation Delay (tpd):

    150 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.44 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

MC14503BCP Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC14503BCP is 3.0V to 5.5V, although it can operate down to 2.0V with reduced performance.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power dissipation according to the thermal derating curve provided in the datasheet, and to ensure good thermal conduction to a heat sink or PCB.
  • The maximum clock frequency that the MC14503BCP can handle is 2.5 MHz, although this may vary depending on the specific application and operating conditions.
  • The MC14503BCP can be interfaced with a microcontroller or other digital logic using standard CMOS logic levels, with careful attention to signal timing and voltage levels to ensure reliable operation.
  • The internal pull-up resistors on the MC14503BCP are used to pull up the output signals to a logic high level when the device is in a high-impedance state, reducing the need for external pull-up resistors and simplifying circuit design.
