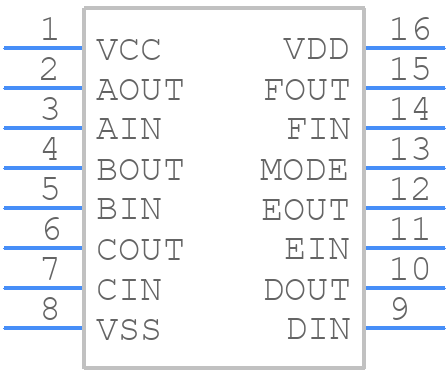

MC14504BDR2G - onsemi

MC14504BDR2G Details

• Manufacturer Part Number:

  MC14504BDR2G

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC 16 LEAD

• Pin Count:

  16

• Manufacturer Package Code:

  751B-05

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  1994-01-01

• Manufacturer:

  onsemi

• YTEOL:

  5.11

• Delay-Max:

  550 ns

• Input Characteristics:

  STANDARD

• Interface IC Type:

  TTL/CMOS TO CMOS TRANSLATOR

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e3

• Length:

  9.9 mm

• Moisture Sensitivity Level:

  1

• Number of Bits:

  1

• Number of Functions:

  6

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP16,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.75 mm

• Supply Current-Max:

  6 mA

• Supply Voltage-Max:

  18 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3.9 mm
