MC14511BDWR2G - onsemi

Description: Chip Complexity: 216 FETs or 54 Equivalent Gates; High-Current Sourcing Outputs (Up to 25 mA); Latch Storage of Code; Time Share (Multiplexing) Facility; Lamp Test Provision; Low Logic Circuit Power Dissipation; Supply Voltage Range = 3.0 V to 18 V; Lamp Intensity Modulation Capability; Triple Diode Protection on all Inputs; Readout Blanking on all Illegal Input Combinations; Blanking Input; Capable of Driving Two Low-power TTL Loads, One Low-power Schottky TTL Load or Two HTL Loads Over the Rated Temperatu

Download MC14511BDWR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

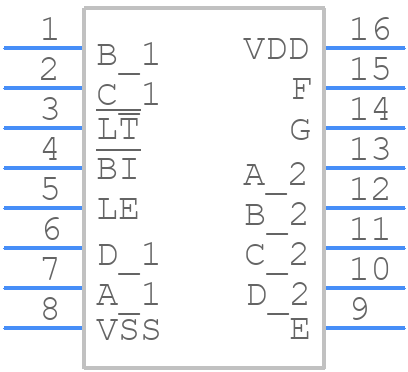

MC14511BDWR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
MC14511BDWR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-16 WB CASE 751G-03 ISSUE D
click to zoom
3D Models
MC14511BDWR2G - onsemi - 3D model - Small Outline Packages - SOIC-16 WB CASE 751G-03 ISSUE D
click to zoom

MC14511BDWR2G Details

  • Manufacturer Part Number:

    MC14511BDWR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SO-16 WB

  • Package Description:

    SOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    751G-03

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    4.5

  • Family:

    CMOS

  • Input Conditioning:

    LATCHED

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    SEVEN SEGMENT DECODER/DRIVER

  • Max I(ol):

    0.0024 A

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    1440 ns

  • Propagation Delay (tpd):

    1440 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm
