MC14514BDWR2 - onsemi

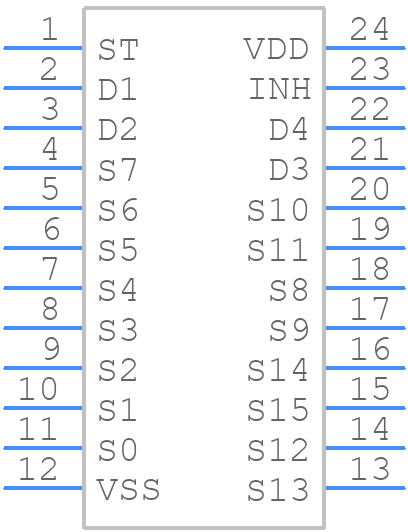

MC14514BDWR2 Details

• Manufacturer Part Number:

  MC14514BDWR2

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  SOIC-24

• Pin Count:

  24

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  onsemi

• YTEOL:

  0

• Additional Feature:

  ADDRESS LATCHES

• Family:

  4000/14000/40000

• Input Conditioning:

  LATCHED

• JESD-30 Code:

  R-PDSO-G24

• JESD-609 Code:

  e0

• Length:

  15.395 mm

• Load Capacitance (CL):

  50 pF

• Logic IC Type:

  4-LINE TO 16-LINE DECODER

• Max I(ol):

  0.00064 A

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP24,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TR

• Prop. Delay@Nom-Sup:

  1100 ns

• Propagation Delay (tpd):

  1100 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.65 mm

• Supply Voltage-Max (Vsup):

  18 V

• Supply Voltage-Min (Vsup):

  3 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Tin/Lead (Sn80Pb20)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  7.5 mm
