MC14514BDWR2G - onsemi

Description: Supply Voltage Range = 3.0 Vdc to 18 Vdc; Capable of Driving Two Low-power TTL Loads or One Low-power Schottky TTL Load Over the Rated Temperature Range; Pb-Free Packages are Available

Download MC14514BDWR2G Model

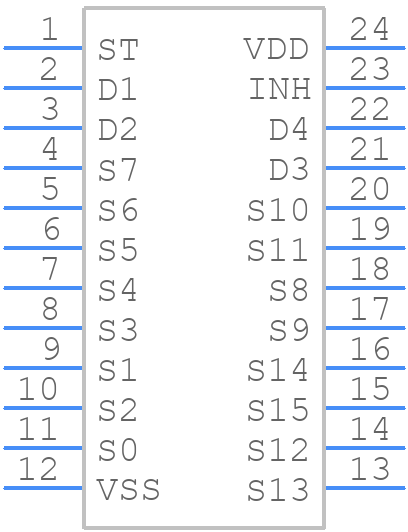

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC14514BDWR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-24 WB CASE 751E-04 ISSUE F
click to zoom
3D Models
MC14514BDWR2G - onsemi  - 3D model - Small Outline Packages - SOIC-24 WB CASE 751E-04 ISSUE F
click to zoom

MC14514BDWR2G Details

  • Manufacturer Part Number:

    MC14514BDWR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC−24 WB

  • Package Description:

    SOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    0.0751

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Additional Feature:

    ADDRESS LATCHES

  • Family:

    4000/14000/40000

  • Input Conditioning:

    LATCHED

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.395 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    4-LINE TO 16-LINE DECODER

  • Max I(ol):

    0.00064 A

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    1100 ns

  • Propagation Delay (tpd):

    1100 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

MC14514BDWR2G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC14514BDWR2G is 2.7V to 5.5V.
  • To ensure reliable operation in high-temperature environments, it is recommended to operate the device within the specified temperature range (-40°C to 125°C) and ensure proper thermal management, such as using a heat sink or thermal pad.
  • The maximum clock frequency supported by the MC14514BDWR2G is 2.5 MHz.
  • The POR and BOR features of the MC14514BDWR2G can be handled by ensuring a stable power supply, using a capacitor to filter out noise, and implementing a reset circuit to handle power-on and brown-out conditions.
  • To minimize noise and EMI, it is recommended to follow good PCB design practices, such as using a ground plane, separating analog and digital signals, and using shielding and filtering components.
