MC145151DW2 - Motorola

Description: PLL Frequency Synthesiser Family CMOS

Download MC145151DW2 Model

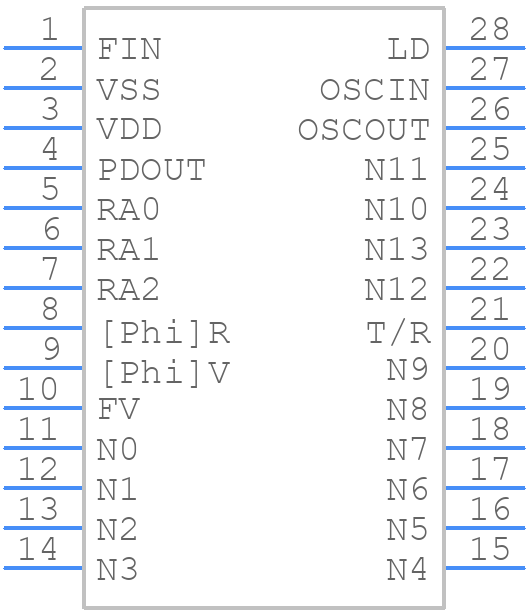

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

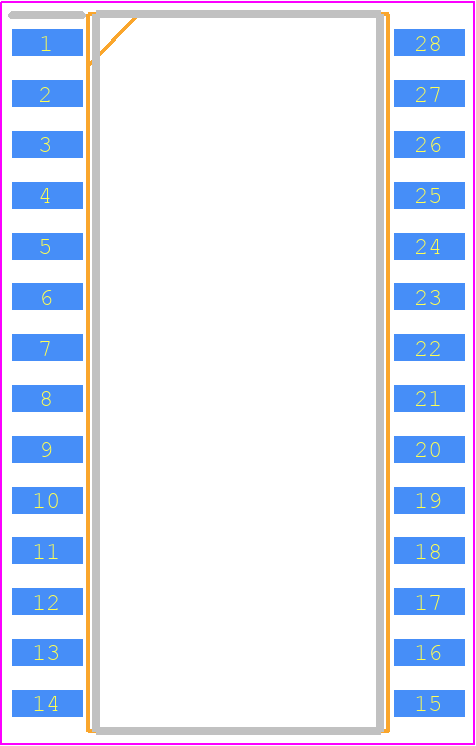

MC145151DW2 - Motorola PCB footprint - Small Outline Packages - Small Outline Packages - DW SUFFIX
click to zoom
3D Models
MC145151DW2 - Motorola  - 3D model - Small Outline Packages - DW SUFFIX
click to zoom

MC145151DW2 Details

  • Manufacturer Part Number:

    MC145151DW2

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    SOG-28

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Motorola Semiconductor Products

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e0

  • Length:

    17.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max (Isup):

    30 mA

  • Supply Voltage-Max (Vsup):

    9 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

MC145151DW2 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC145151DW2 is 4.5V to 5.5V, with a typical voltage of 5V.
  • To ensure reliable operation in high-temperature environments, it is recommended to operate the device within the specified temperature range (-40°C to 125°C) and ensure proper thermal management, such as using a heat sink or providing adequate airflow.
  • The maximum clock frequency that the MC145151DW2 can support is 2 MHz, although it can operate at lower frequencies as well.
  • The MC145151DW2 can be interfaced with a microcontroller or other digital logic devices using standard CMOS logic levels. Ensure that the voltage levels and signal timing are compatible with the device's specifications.
  • The power consumption of the MC145151DW2 depends on the operating frequency and voltage. At 5V and 1 MHz, the typical power consumption is around 10 mW.
