MC145151P2 - Motorola

Description: Parallel-Input PLL Frequency Synthesizer Plastic Dip –40 to 85°C 3.0 to 9.0V

Download MC145151P2 Model

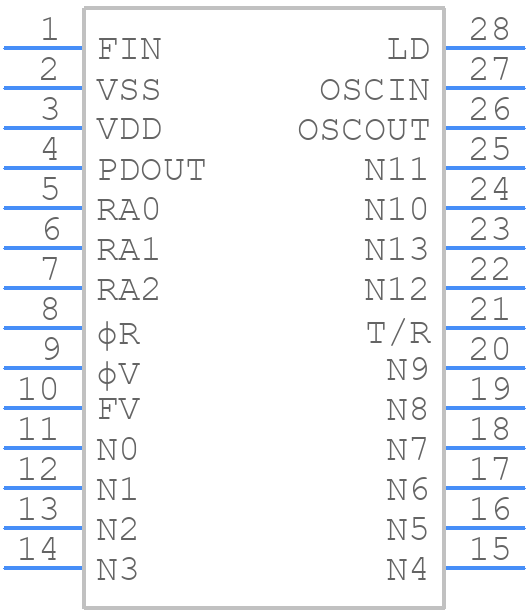

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

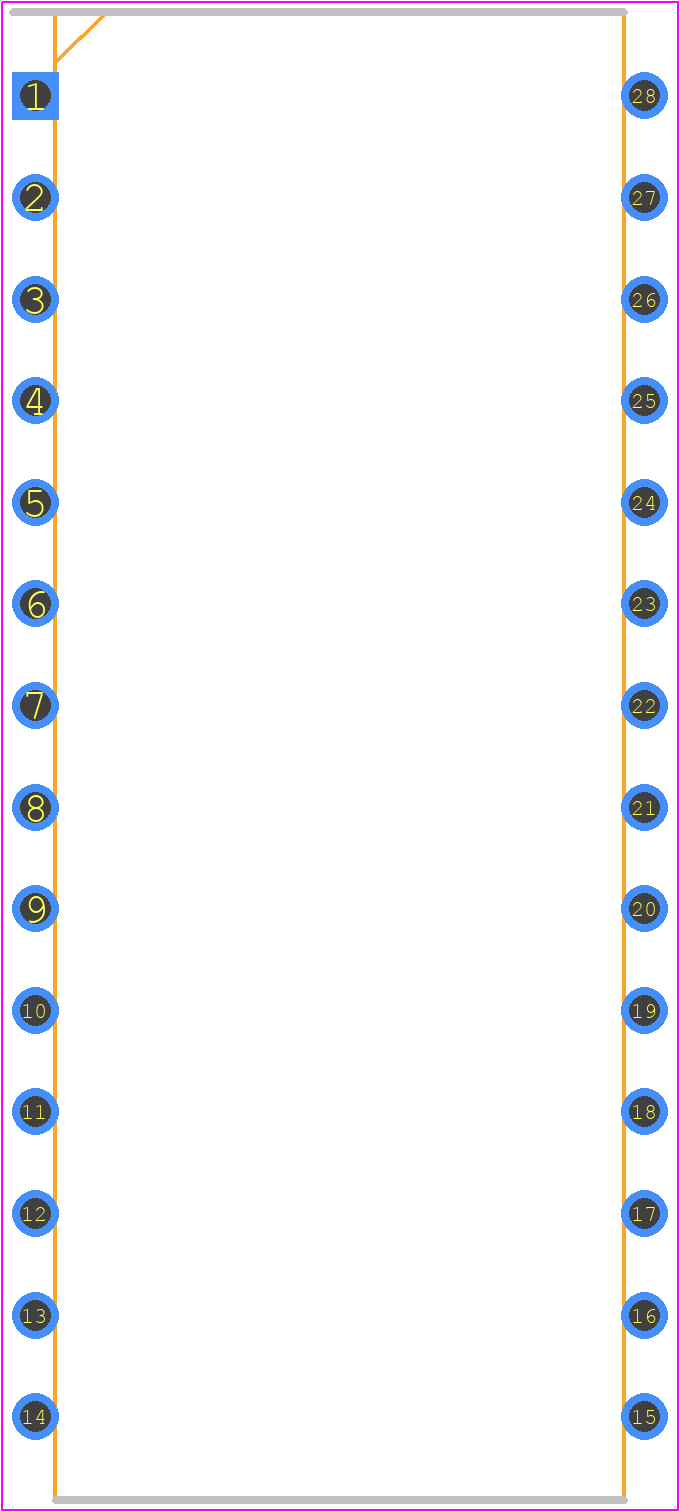

MC145151P2 - Motorola PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P SUFFIX PLASTIC DIP CASE 710–02
click to zoom
3D Models
MC145151P2 - Motorola  - 3D model - Dual-In-Line Packages - P SUFFIX PLASTIC DIP CASE 710–02
click to zoom

MC145151P2 Details

  • Manufacturer Part Number:

    MC145151P2

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    PLASTIC, DIP-28

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Motorola Semiconductor Products

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    R-PDIP-T28

  • JESD-609 Code:

    e0

  • Length:

    36.83 mm

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max (Isup):

    30 mA

  • Supply Voltage-Max (Vsup):

    9 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    15.24 mm
