The recommended operating voltage range for the MC145152P2 is 4.5V to 5.5V, with a typical voltage of 5V.
To ensure reliable operation in high-temperature environments, it's recommended to use a heat sink and ensure good thermal conductivity between the device and the heat sink. Additionally, follow proper PCB design and layout guidelines to minimize thermal resistance.
The MC145152P2 can operate at clock frequencies up to 2 MHz, but it's recommended to operate at frequencies below 1 MHz for optimal performance and to minimize power consumption.
To minimize EMI and RFI, use proper shielding, grounding, and decoupling techniques. Ensure that the PCB layout is designed to minimize radiation and susceptibility to external interference. Additionally, use EMI filters and shielding components as needed.
A simple POR circuit can be implemented using a resistor, capacitor, and diode. The recommended values are R = 1 kΩ, C = 10 μF, and D = 1N4148. This circuit ensures a clean power-on reset and prevents latch-up conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC145152P2 Overview

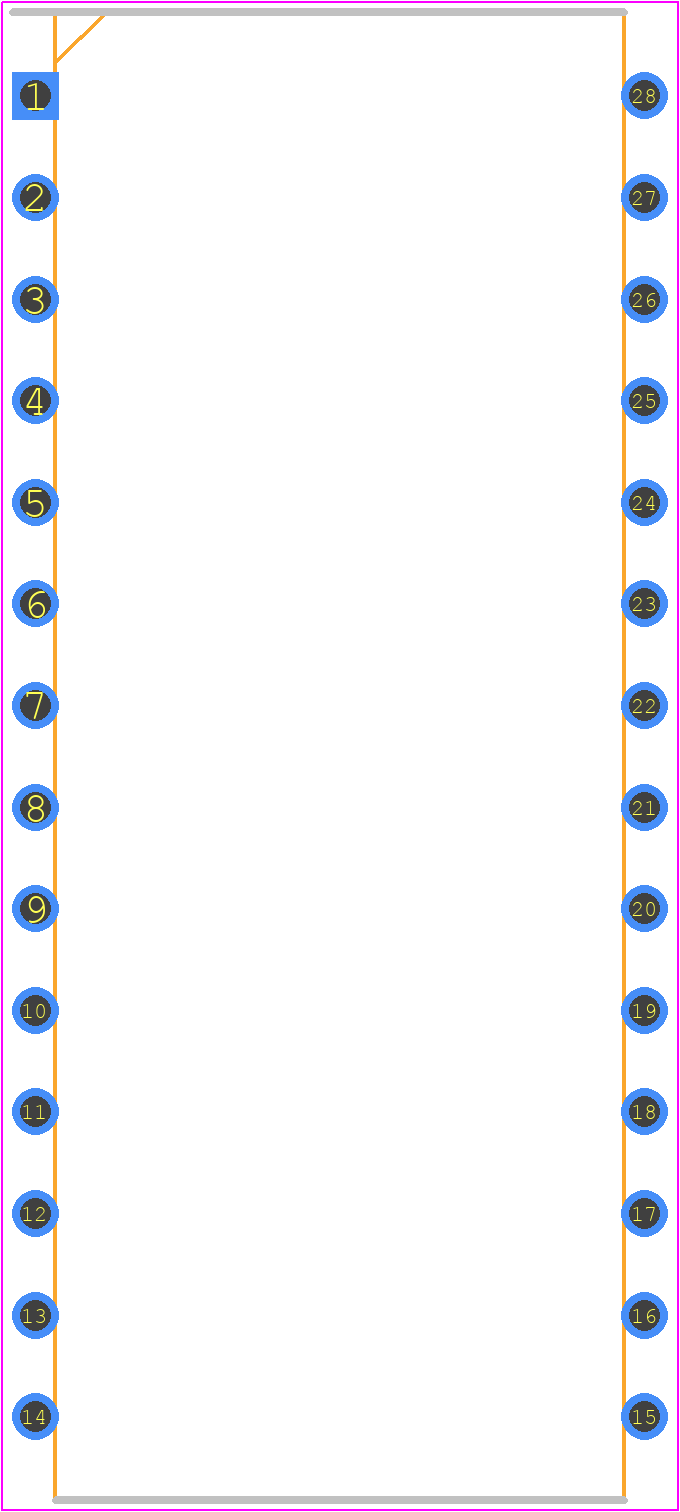

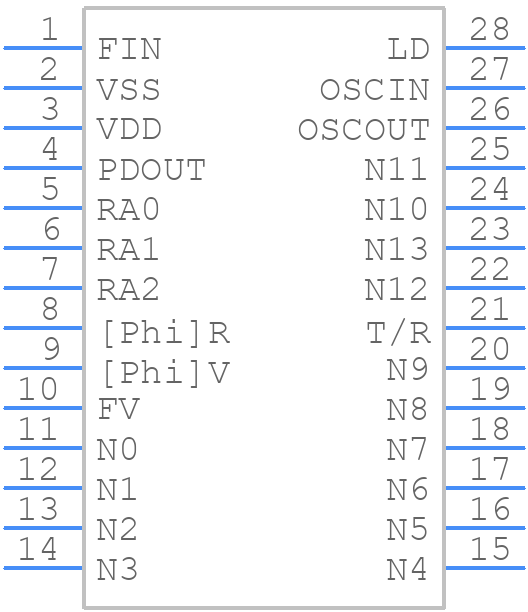

Use the download button to access the MC145152P2 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MC145,
or try a keyword search, such as PLL or Frequency Synthesis Circuits
