- Part Number MC145170D2
- Manufacturer NXP
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - D Suffix, SOG-16 (Case 751B-05, Issue K)
- Released Date Sep 1, 2023
- Last Modified Date Sep 2, 2023 6:25 AM UTC
- Pinout / Pin List Click Here (Member Only)
MC145170D2 Details
-
Manufacturer Part Number:
MC145170D2
-
Part Life Cycle Code:
Obsolete
-
HTS Code:
8542.39.00.60
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
0
-
Analog IC - Other Type:
PLL FREQUENCY SYNTHESIZER
MC145170D2 Frequently Asked Questions (FAQs)
-
The recommended operating voltage range for the MC145170D2 is 2.7V to 5.5V.
-
To ensure reliable communication, ensure that the clock frequency is within the recommended range (100 kHz to 400 kHz), and that the transmission line is properly terminated to minimize reflections and noise.
-
The maximum data transfer rate of the MC145170D2 is 400 kbps.
-
Implement a retry mechanism to handle errors, and consider using a watchdog timer to reset the device in case of prolonged errors. Also, ensure that the device is properly reset after a power-on or brownout condition.
-
Yes, the MC145170D2 has built-in noise filtering and hysteresis to improve noise immunity. However, it's still important to follow proper PCB design and layout practices to minimize noise and electromagnetic interference (EMI).
Trust Checks
Community Provided
System Verified
Community Approved
MC145170D2 Overview

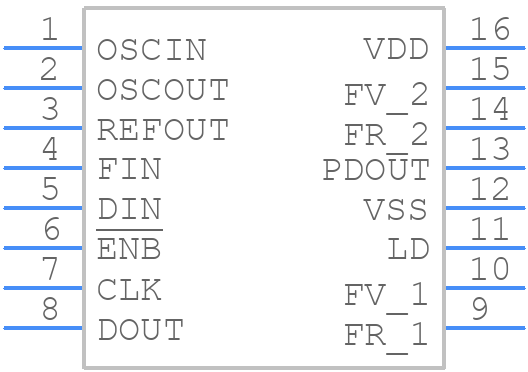

Use the download button to access the MC145170D2 schematic symbol, PCB footprint, and 3D model.
