MC14517BDWR2G - onsemi

Description: Output Transitions Occur on the Rising Edge of the Clock Pulse; Diode Protection on All Inputs; Exceedingly Slow Input Transition Rates May Be Applied to the Clock Input; 3-State Output at 64th-Bit Allows Use in Bus Logic Applications; Shift Registers of any Length may be Fully Loaded with 16 Clock Pulses; Supply Voltage Range = 3.0 Vdc to 18 Vdc; Capable of Driving Two Low-power TTL Loads or One Low-power Schottky TTL Load Over the Rated Temperature Range; Fully Static Operation; Pb-Free Packages are Avail

Download MC14517BDWR2G Model

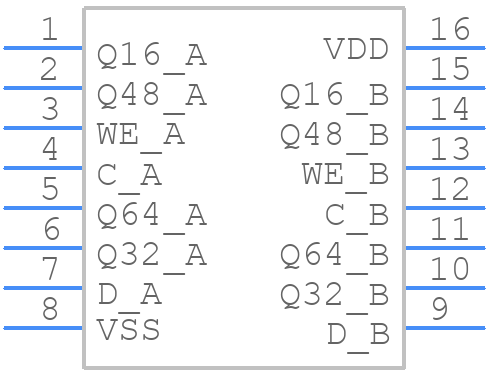

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC14517BDWR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-16 WB CASE 751G-03 ISSUE D
click to zoom
3D Models
MC14517BDWR2G - onsemi  - 3D model - Small Outline Packages - SOIC-16 WB CASE 751G-03 ISSUE D
click to zoom

MC14517BDWR2G Details

  • Manufacturer Part Number:

    MC14517BDWR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SO-16 WB

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    751G-03

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Additional Feature:

    16-BIT, 32-BIT AND 48-BIT OUTPUT ALSO AVAILABLE

  • Count Direction:

    RIGHT

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    SERIAL IN SERIAL OUT

  • Max Frequency@Nom-Sup:

    1500000 Hz

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    64

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    770 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    7.5 mm

  • fmax-Min:

    5.3 MHz

MC14517BDWR2G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC14517BDWR2G is 2.7V to 5.5V.
  • To ensure reliable operation in high-temperature environments, it is recommended to operate the device within the specified temperature range (-40°C to 125°C) and ensure proper thermal management, such as using a heat sink or thermal pad.
  • The maximum clock frequency supported by the MC14517BDWR2G is 2.5 MHz.
  • The POR and BOR features of the MC14517BDWR2G can be handled by ensuring a stable power supply, using a capacitor to filter out noise, and implementing a reset circuit to handle power-on and brown-out conditions.
  • To minimize noise and EMI, it is recommended to follow good PCB design practices, such as using a solid ground plane, keeping signal traces short and away from noise sources, and using shielding and filtering components as needed.
