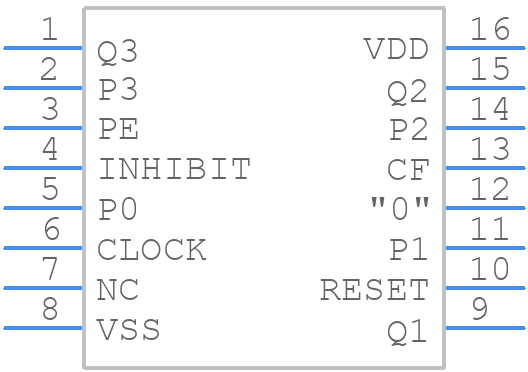

MC14526BCPG - onsemi

MC14526BCPG Details

• Manufacturer Part Number:

  MC14526BCPG

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

  ROHS COMPLIANT, PLASTIC, DIP-16

• Pin Count:

  16

• HTS Code:

  8542.39.00.60

• Manufacturer:

  onsemi

• YTEOL:

  0

• Count Direction:

  DOWN

• Family:

  4000/14000/40000

• JESD-30 Code:

  R-PDIP-T16

• JESD-609 Code:

  e3

• Length:

  19.175 mm

• Load Capacitance (CL):

  50 pF

• Load/Preset Input:

  YES

• Logic IC Type:

  BINARY COUNTER

• Max Frequency@Nom-Sup:

  1500000 Hz

• Max I(ol):

  0.00064 A

• Mode of Operation:

  SYNCHRONOUS

• Number of Bits:

  4

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Packing Method:

  RAIL

• Peak Reflow Temperature (Cel):

  260

• Prop. Delay@Nom-Sup:

  1100 ns

• Propagation Delay (tpd):

  1100 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.44 mm

• Supply Voltage-Max (Vsup):

  18 V

• Supply Voltage-Min (Vsup):

  3 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Trigger Type:

  POSITIVE EDGE

• Width:

  7.62 mm

• fmax-Min:

  4 MHz
