MC14541BDTR2G - onsemi

Description: Supply Voltage Range = 3.0 Vdc to 18 Vdc with Auto Reset Disabled (Pin 5 = VDD) 8.5 Vdc to 18 Vdc with Auto Reset Enabled (Pin 5 = VSS); Built-in Low Power RC Oscillator (+/- 2% accuracy over temperature range and +/- 20% supply and +/- 3% over processing at < 10 kHz); Available Outputs 28, 210, 213 or 216; Q/Qbar Select Provides Output Logic Level Flexibility; Clock Conditioning Circuit Permits Operation with Very Slow Clock Rise and Fall Times; Reset (auto or master) Disables Oscillator During Resetting t

Download MC14541BDTR2G Model

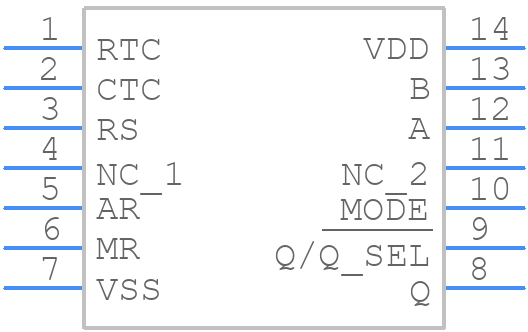

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC14541BDTR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP14 CASE 948G
click to zoom
3D Models
MC14541BDTR2G - onsemi  - 3D model - Small Outline Packages - TSSOP14 CASE 948G
click to zoom

MC14541BDTR2G Details

  • Manufacturer Part Number:

    MC14541BDTR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP-14

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    948G

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.32

  • Clock Frequency-Max:

    0.032 MHz

  • Information Access Method:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    14

  • Number of Timers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    TIMER, PROGRAMMABLE

MC14541BDTR2G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC14541BDTR2G is 2.7V to 5.5V.
  • To ensure reliable operation in high-temperature environments, it is recommended to operate the device within the specified temperature range (-40°C to 125°C) and ensure proper thermal management, such as using a heat sink or thermal pad.
  • The maximum clock frequency supported by the MC14541BDTR2G is 2.5 MHz.
  • The POR and BOR features of the MC14541BDTR2G can be handled by ensuring a stable power supply, using a capacitor to filter out noise, and implementing a reset circuit to handle power-on and brown-out conditions.
  • The internal oscillator of the MC14541BDTR2G provides a clock signal for the device, eliminating the need for an external clock source.
