MC14549BDWR2G - onsemi

Description: All Control Inputs Positive-Edge Triggered; Supply Voltage Range = 3.0 Vdc to 18 Vdc; Chip Complexity: 488 FETs or 122 Equivalent Gates; Totally Synchronous Operation; Retriggerable; Serial Output; Capable of Driving 2 Low-Power TTL Loads, 1 Low-Power Schottky TTL Load or 2 HTL Loads Over the Rated Temperature Range; Single Supply Operation; All Outputs Buffered; Compatible with a Variety of Digital and Analog Systems such as the MC1408 8-Bit D/A Converter; Pb-Free Packages are Available

Download MC14549BDWR2G Model

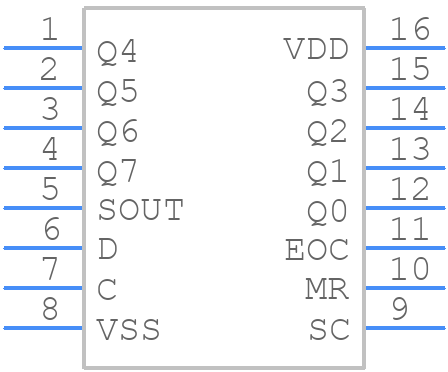

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC14549BDWR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−16 WB CASE 751G−03
click to zoom
3D Models
MC14549BDWR2G - onsemi  - 3D model - Small Outline Packages - SOIC−16 WB CASE 751G−03
click to zoom

MC14549BDWR2G Details

  • Manufacturer Part Number:

    MC14549BDWR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SO-16 WB

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    751G-03

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Additional Feature:

    SERIAL OUTPUT, ALL CONTROL INPUTS POSITIVE-EDGE TRIGGERED

  • Count Direction:

    RIGHT

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    SERIAL IN PARALLEL OUT

  • Max Frequency@Nom-Sup:

    15000000 Hz

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.6 mA

  • Propagation Delay (tpd):

    1000 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    7.5 mm

  • fmax-Min:

    2 MHz
