A simple RC circuit with a 1kΩ resistor and a 10μF capacitor can be used to provide a power-on reset to the MC1455DG. This ensures that the timer starts in a known state after power-up.
To ensure stable oscillation, use a high-quality capacitor (e.g., ceramic or film) for C1 and C2, and choose R1 and R2 values that satisfy the oscillation frequency formula: f = 1.44 / (R1*R2*C1*C2).
The MC1455DG can sink or source up to 200mA of current, but it's recommended to limit the output current to 100mA or less to ensure reliable operation and prevent overheating.
Yes, the MC1455DG can be configured as a monostable multivibrator by connecting the trigger input (pin 6) to the threshold input (pin 2) and using an external capacitor and resistor to set the pulse width.
To prevent unwanted oscillation during power-up or brownout conditions, add a voltage supervisor or a power-on reset circuit to ensure that the timer only starts oscillating when the power supply voltage is stable and within the recommended operating range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC1455DG Overview

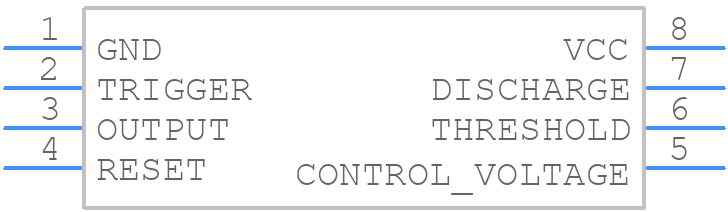

Use the download button to access the MC1455DG schematic symbol, PCB footprint, and 3D model.
