A simple RC circuit with a 10uF capacitor and a 1kΩ resistor can be used to provide a power-on reset to the MC1455P1G. This ensures that the timer starts in a known state after power-up.
To ensure stable oscillation, use a high-quality capacitor (e.g., ceramic or film) for C1 and C2, and choose R1 and R2 values that provide a total resistance of around 10kΩ. Also, keep the timer's input pins (2 and 6) away from noise sources.
The MC1455P1G can operate up to 2.5 MHz, but the maximum frequency is dependent on the values of R1, R2, C1, and C2. For higher frequencies, use smaller capacitor values and larger resistor values.
To use the MC1455P1G as a monostable multivibrator, connect the trigger input (pin 6) to the threshold input (pin 2) through a capacitor. The output pulse width is determined by the values of R1, R2, C1, and C2.
The MC1455P1G can sink or source up to 20mA of current at the output (pin 3). Exceeding this limit may cause damage to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC1455P1G Overview

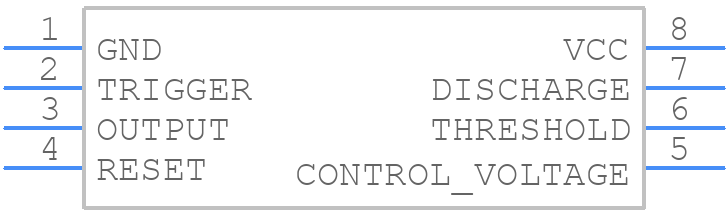

Use the download button to access the MC1455P1G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC145,
or try a keyword search, such as Analog Waveform Generation Functions
