- Part Number MC20901
- Manufacturer Meticom
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - TQLMP-48-
- Released Date Nov 14, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MC20901 Details
-
Manufacturer Part Number:
MC20901
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Contact Manufacturer
-
Package Description:
TQLMP-48
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Meticom GmbH
-
Additional Feature:
SUPPLY VOLTAGE FOR THE LVDS OUTPUT STAGE IS MIN=2.3V, TYP=2.5, MAX=2.7V
-
Interface IC Type:
INTERFACE CIRCUIT
-
JESD-30 Code:
S-PQCC-N48
-
Length:
7 mm
MC20901 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and EMI.
-
Use a reliable clock source, ensure proper signal termination, and implement error detection and correction mechanisms such as CRC and checksums. Also, follow the recommended protocol for data transmission and reception.
-
The maximum cable length depends on the specific application and the type of cable used. As a general guideline, the MC20901 supports cable lengths up to 10 meters for RS-485 and 100 meters for RS-422. However, it's recommended to consult the datasheet and perform testing for specific use cases.
-
The MC20901 can be configured for half-duplex or full-duplex operation through the control pins (e.g., RXEN, TXEN, and DE). Consult the datasheet for specific pin configurations and settings for each mode.
-
The MC20901 has a maximum junction temperature of 150°C. Ensure proper heat dissipation by providing a thermal pad on the PCB, using a heat sink if necessary, and keeping the device away from heat sources.
Trust Checks
Community Provided
System Verified
Community Approved
MC20901 Overview

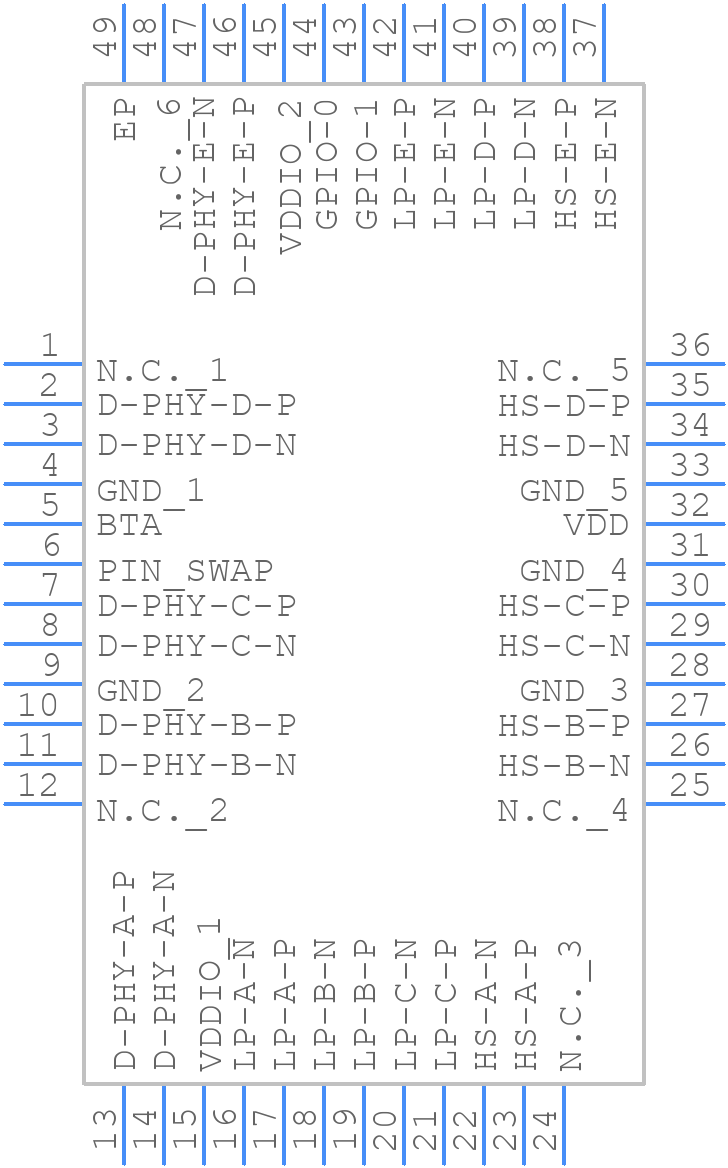

Use the download button to access the MC20901 schematic symbol, PCB footprint, and 3D model.
