MC25147 - Multicomp Pro

Description: Power Relay, SPST-NO, 12 VDC, 30 A, Through Hole , 150W , 100mΩ , -30°C to +85°C

Download MC25147 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MC25147 - Multicomp Pro - PCB symbol
click to zoom

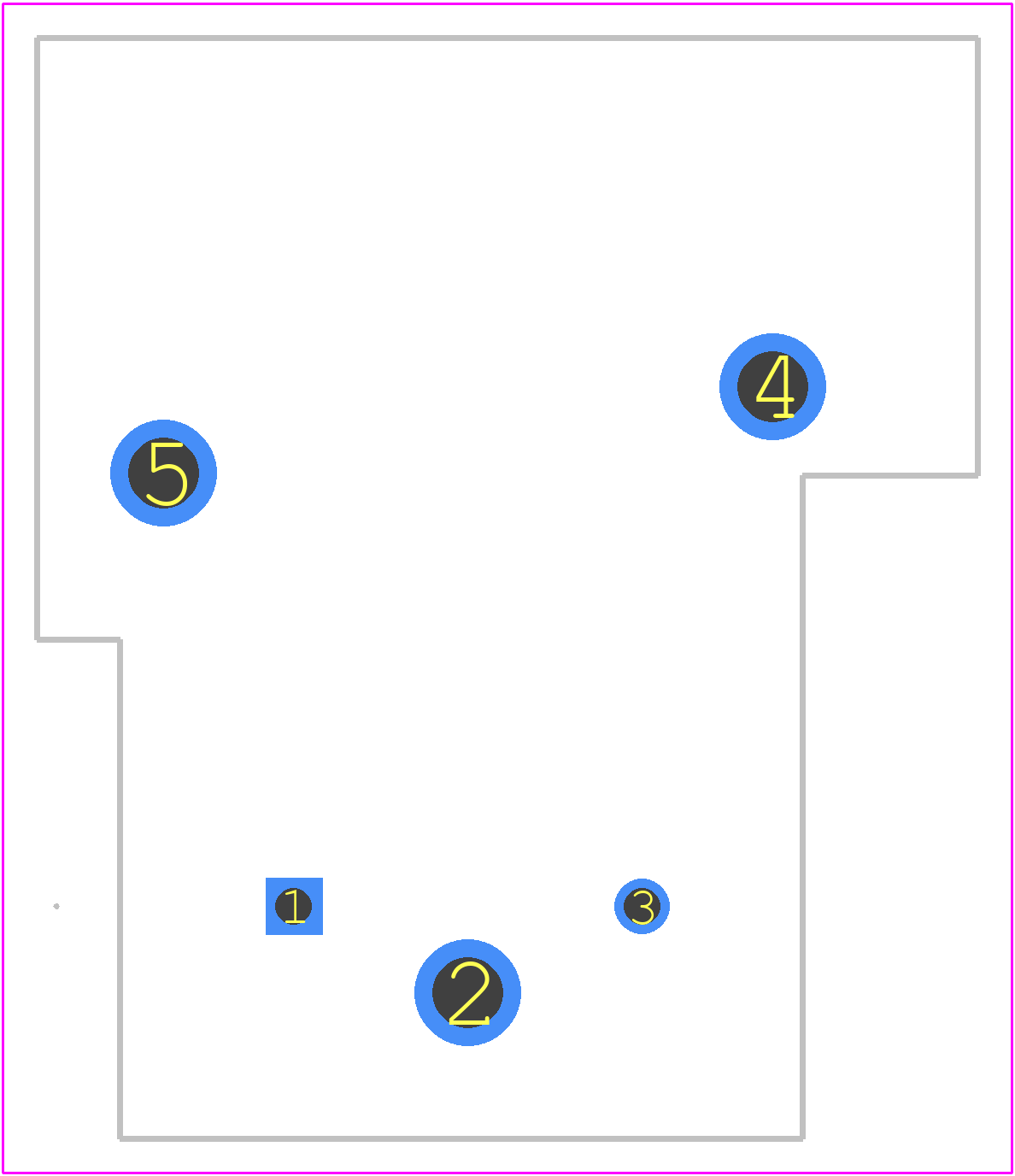

PCB Footprints
MC25147 - Multicomp Pro PCB footprint - Other - Other - MC25147-2
click to zoom
3D Models
MC25147 - Multicomp Pro - 3D model - Other - MC25147-2
click to zoom

MC25147 Details

  • Manufacturer Part Number:

    MC25147

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.50

  • Manufacturer:

    SPC Multicomp

  • YTEOL:

    7

  • Body Breadth:

    27.5 mm

  • Body Height:

    20.4 mm

  • Body Length or Diameter:

    32.2 mm

  • Coil Current(DC)-Max:

    0.075 A

  • Coil Operate Voltage(DC):

    8.4 V

  • Coil Power:

    900 mW

  • Coil Release Voltage(DC):

    1.2 V

  • Coil Resistance:

    160 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    30A@250VAC

  • Contact Current(AC)-Max:

    30 A

  • Contact Current(DC)-Max:

    30 A

  • Contact (DC) Max Rating R Load:

    30A@24VDC

  • Contact Voltage(AC)-Max:

    250 V

  • Contact Voltage(DC)-Max:

    24 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    15 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Physical Dimension:

    32.2mm x 27.5mm x 20.4mm

  • Relay Action:

    MOMENTARY

  • Relay Function:

    SPST

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    10 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

MC25147 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MC25147 is -40°C to +125°C, although the datasheet only mentions the storage temperature range.
  • To ensure proper power supply, connect the VCC pin to a stable 5V power source, and the GND pin to a reliable ground connection. Additionally, decouple the power supply with a 0.1uF capacitor to reduce noise and ensure stable operation.
  • The maximum current rating for the MC25147's output pins is 20mA per pin, although it's recommended to keep the current below 10mA to ensure reliable operation and prevent overheating.
  • While the MC25147 is designed for 5V operation, it can tolerate a 3.3V power supply with some limitations. However, the output voltage levels may not be compatible with 3.3V logic, and the device's performance may be affected.
  • When the input pins are not in use, it's recommended to tie them to a valid logic level (either VCC or GND) to prevent floating inputs and ensure proper device operation.
