MC3302DR2G - onsemi

Description: Low Output Saturation Voltage: 130 mV (Typ) @ 4.0 mA; Single or Split Supply Operation; TTL and CMOS Compatible; Input Common Mode Voltage Range to Gnd; ESD Clamps on the Inputs Increase Reliability without Affecting Device Operation; Low Input Bias Current: 25 nA (Typ); Low Input Offset Current: +/- 5.0 nA (Typ)

Download MC3302DR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

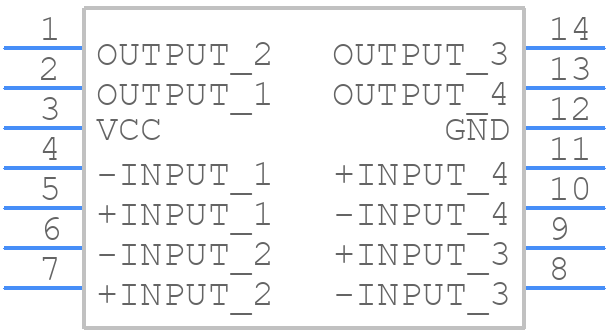

Symbol
MC3302DR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
MC3302DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-14 NB CASE751A-03 ISSUE L
click to zoom
3D Models
MC3302DR2G - onsemi - 3D model - Small Outline Packages - SOIC-14 NB CASE751A-03 ISSUE L
click to zoom

MC3302DR2G Details

  • Manufacturer Part Number:

    MC3302DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-14 NB

  • Pin Count:

    14

  • Manufacturer Package Code:

    751A-03

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.57

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    1 µA

  • Bias Current-Max (IIB) @25C:

    0.5 µA

  • Input Offset Voltage-Max:

    40000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-COLLECTOR

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    1300 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage Limit-Max:

    30 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MC3302DR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC3302DR2G involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power supply. Additionally, using a shielded inductor and keeping the switching node (SW) away from sensitive analog circuits can help minimize EMI.
  • The inductor value depends on the input voltage, output voltage, and switching frequency. A good starting point is to use the inductor value recommended in the datasheet (e.g., 10uH). Then, adjust the value based on the specific application requirements, such as output current and ripple voltage.
  • The MC3302DR2G is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and consider derating the device's performance at high temperatures.
  • Yes, the MC3302DR2G can be used in a synchronous rectification configuration. This can improve efficiency by reducing the voltage drop across the rectifier diode. However, it requires additional components and careful design to ensure proper operation.
  • To troubleshoot issues with the MC3302DR2G, start by verifying the PCB layout and component values. Check for proper decoupling, correct inductor value, and adequate heat sinking. Use an oscilloscope to observe the switching node (SW) and output voltage waveforms. Consult the datasheet and application notes for guidance on troubleshooting common issues.
