The MC33039P can operate from -40°C to 125°C, but the recommended operating temperature range is -20°C to 85°C for optimal performance.
The MC33039P requires a single 5V power supply, and it's recommended to use a decoupling capacitor (e.g., 10uF) close to the VCC pin to filter out noise and ensure stable operation.
The MC33039P's output drivers are capable of sourcing up to 100mA and sinking up to 200mA, but it's recommended to limit the current to 50mA per pin for reliable operation.
To minimize power consumption, set the SHDN pin high to enable shutdown mode, and consider using the internal clock oscillator instead of an external clock source. Additionally, reduce the switching frequency and adjust the output driver strength to minimize power losses.
To minimize electromagnetic interference (EMI) and ensure reliable operation, keep the layout compact, use a solid ground plane, and route the output traces away from the input traces. Also, use a common mode choke or ferrite bead to filter out high-frequency noise.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC33039P Overview

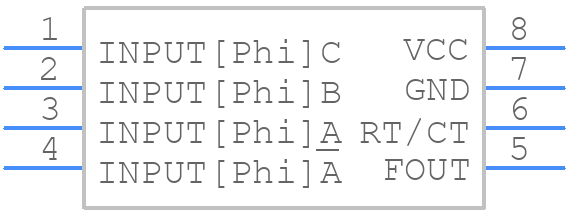

Use the download button to access the MC33039P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC330,
or try a keyword search, such as Motion Control Electronics
