MC33071DR2G - onsemi

Description: High Slew Rate: 13 V/µs; Large Output Voltage Swing: -14.7 V to +14 V (with +/-15 V Supplies); Excellent Gain Margin: 12 dB; Wide Bandwidth: 4.5 MHz; Fast Settling Time: 1.1 µs to 0.1%; Low Input Offset Voltage: 3.0 mV Maximum (A Suffix); Output Short Circuit Protection; Large Capacitance Drive Capability: 0 pF to 10,000 pF; Low Total Harmonic Distortion: 0.02%; Excellent Phase Margin: 60° Wide Input Common Mode Voltage Range: Includes Ground (VEE); Wide Single Supply Operation: 3.0 V to 44 V

Download MC33071DR2G Model

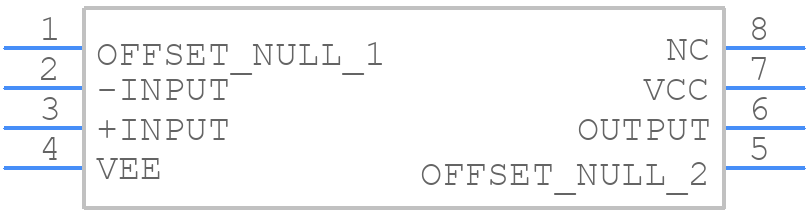

Schematic
