Description:Efficient High Frequency Operation; Pin Out Equivalent to DS0026 and MMH0026; Two Independent Channels with 1.5 A Totem Pole Output; CMOS/LSTTL Compatible Inputs with Hysteresis; Output Rise and Fall Times of 15 ns with 1000 pF Load; Undervoltage Lockout with Hysteresis; Low Standby Current; Enhanced System Performance with Common Switching Regulator Control ICs
A good PCB layout for the MC33151VDR2G involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a shielded inductor and to keep the switching node (pin 5) away from sensitive analog circuits.
To ensure the MC33151VDR2G operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Make sure the device is not exposed to excessive temperatures, and the input voltage is within the recommended range. Also, ensure the output current is within the specified maximum rating.
The recommended input capacitor value for the MC33151VDR2G is 10uF to 22uF, with an X5R or X7R dielectric. This type of capacitor is suitable for high-frequency switching converters and can handle the high ripple current generated by the device.
To troubleshoot the MC33151VDR2G, start by checking the input voltage, output voltage, and output current. Verify that the device is properly connected and that the input and output capacitors are of the correct value and type. Check for any signs of overheating, and ensure the device is not exposed to excessive temperatures.
Yes, the MC33151VDR2G can be used in a synchronous rectification configuration. However, this requires additional external components, such as a synchronous rectifier FET and a Schottky diode. The device's internal switch can be used as the main switch, and the synchronous rectifier FET can be used to reduce power losses.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC33151VDR2G Overview

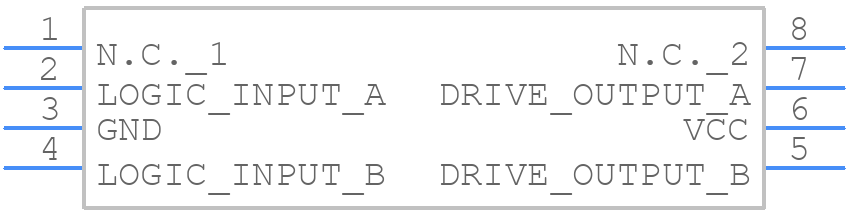

Use the download button to access the MC33151VDR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC331,
or try a keyword search, such as MOSFET Drivers
