Description:Output Rise and Fall Times of 15 ns with 1000 pF Load; CMOS/LSTTL Compatible Inputs with Hysteresis; Low Standby Current; Two Independent Channels with 1.5 A Totem Pole Outputs; Undervoltage Lockout with Hysteresis; Efficient High Frequency Operation; Enhanced System Performance with Common Switching Regulator Control ICs; Pb-Free Packages are Available
A good PCB layout for the MC33152PG involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a shielded inductor and to keep the device away from high-frequency components.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input and output pins properly and to use a stable input voltage source.
The MC33152PG is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's recommended to derate the device's power dissipation according to the ambient temperature to ensure reliable operation.
Yes, the MC33152PG is suitable for high-reliability applications. It's manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it's recommended to follow proper design and manufacturing guidelines to ensure the device operates within its specifications.
To troubleshoot issues with the MC33152PG, start by checking the input voltage, output voltage, and current. Verify that the device is properly connected and that the input and output capacitors are of high quality. Use an oscilloscope to check for oscillations or other anomalies. If the issue persists, consult the datasheet and application notes for guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC33152PG Overview

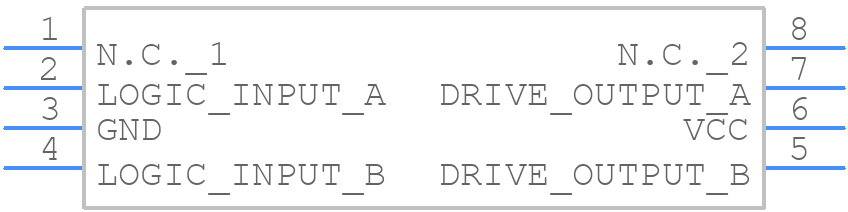

Use the download button to access the MC33152PG schematic symbol, PCB footprint, and 3D model.
