MC33171DR2G - onsemi

Description: Large Output Voltage Swing: -14.2 V to +14.2 V (with +/-15 V Supplies); Low Supply Current: 180 µA (Per Amplifier); Output Short Circuit Protection; Excellent Gain Margin: 15 dB; Low Input Offset Voltage: 2.0 mV; Wide Supply Operating Range: 3.0 V to 44 V or +/-1.5 V to +/- 22 V; Wide Input Common Mode Range, Including Ground (VEE); Excellent Phase Margin: 60 C°; ESD Diodes Provide Input Protection for Dual and Quad; High Slew Rate: 2.1 V/µs; Low Total Harmonic Distortion: 0.03%; Wide Bandwidth: 1.8 MHz; La

Download MC33171DR2G Model

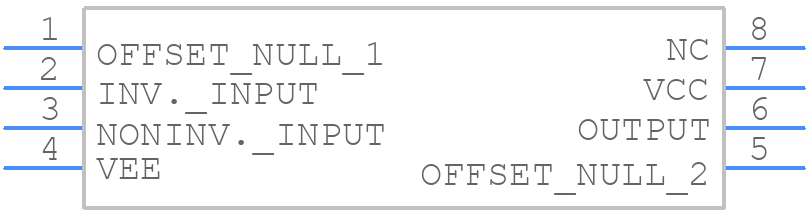

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC33171DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - MC33171DR2G
click to zoom
3D Models
MC33171DR2G - onsemi  - 3D model - Small Outline Packages - MC33171DR2G
click to zoom

MC33171DR2G Details

  • Manufacturer Part Number:

    MC33171DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    4.15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.2 µA

  • Bias Current-Max (IIB) @25C:

    0.1 µA

  • Common-mode Reject Ratio-Min:

    80 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    6500 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -22 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    1.6 V/us

  • Slew Rate-Nom:

    2.1 V/us

  • Supply Current-Max:

    0.3 mA

  • Supply Voltage Limit-Max:

    22 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1800

  • Voltage Gain-Min:

    50000

  • Wideband:

    NO

  • Width:

    3.9 mm

MC33171DR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC33171DR2G involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog and digital ground plane to reduce noise coupling.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the input and output capacitors should be selected based on the specific application requirements, and the device should be operated within its recommended operating conditions.
  • The MC33171DR2G is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's essential to ensure that the device does not exceed its maximum junction temperature (Tj) of 150°C.
  • Yes, the MC33171DR2G is suitable for high-reliability and automotive applications. It's manufactured using a robust process, and onsemi provides a range of reliability and quality data to support its use in these applications.
  • To troubleshoot issues with the MC33171DR2G, start by verifying the device's input and output voltages, and checking for any signs of overheating or physical damage. Use an oscilloscope to examine the device's output waveform and check for any signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting common issues.
