MC33171DT - STMicroelectronics

Description: LOW POWER SINGLE BIPOLAR OP-AMPS

Download MC33171DT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

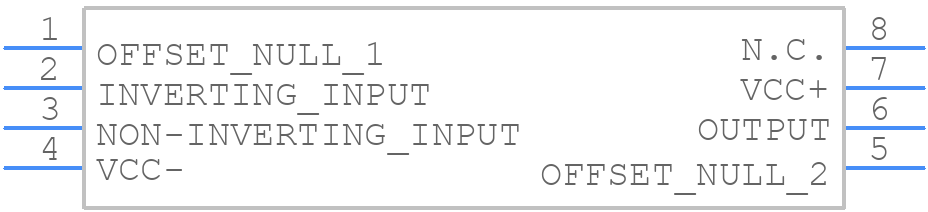

MC33171DT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
MC33171DT - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - 8 PINS - PLASTIC MICROPACKAGE
click to zoom
3D Models
MC33171DT - STMicroelectronics - 3D model - Small Outline Packages - 8 PINS - PLASTIC MICROPACKAGE
click to zoom

MC33171DT Details

  • Manufacturer Part Number:

    MC33171DT

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    MICRO, PLASTIC, SO-8

  • Pin Count:

    8

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    4.15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.2 µA

  • Bias Current-Max (IIB) @25C:

    0.1 µA

  • Common-mode Reject Ratio-Min:

    80 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    6500 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -22 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    8

  • Number of Terminals:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    1.6 V/us

  • Slew Rate-Nom:

    2 V/us

  • Supply Current-Max:

    0.3 mA

  • Supply Voltage Limit-Max:

    22 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    2100

  • Voltage Gain-Min:

    25000

  • Wideband:

    NO

  • Width:

    3.9 mm

MC33171DT Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC33171DT should include a solid ground plane, wide power traces, and a thermal relief pattern under the device to facilitate heat dissipation. A minimum of 2oz copper thickness is recommended.
  • To ensure stable output voltage regulation, it's essential to use a high-quality output capacitor with low ESR, such as a ceramic or tantalum capacitor. Additionally, the input capacitor should be placed close to the device to minimize noise and ripple.
  • Although the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and prevent damage to the device.
  • To protect the device from overcurrent and overheating, it's recommended to add an external current sense resistor and a thermal shutdown circuit. Additionally, ensure that the device is mounted on a heat sink with a thermal resistance of less than 10°C/W.
  • A 10uF to 22uF ceramic or electrolytic capacitor with a voltage rating of at least 25V is recommended for the input capacitor. The capacitor should be placed close to the device to minimize noise and ripple.
