MC33171N - STMicroelectronics

Description: SINGLE BIPOLAR OPERATIONAL AMPLIFIERS

Download MC33171N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

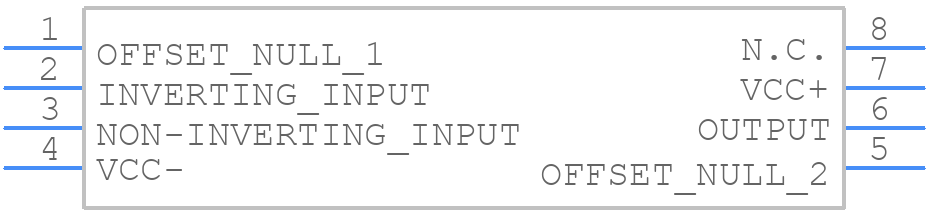

Symbol
MC33171N - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
MC33171N - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8 PINS - PLASTIC DIP
click to zoom
3D Models
MC33171N - STMicroelectronics - 3D model - Dual-In-Line Packages - 8 PINS - PLASTIC DIP
click to zoom

MC33171N Details

  • Manufacturer Part Number:

    MC33171N

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.2 µA

  • Bias Current-Max (IIB) @25C:

    0.1 µA

  • Common-mode Reject Ratio-Min:

    80 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    6500 µV

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.8 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Neg Supply Voltage Limit-Max:

    -22 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    8

  • Number of Terminals:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Slew Rate-Min:

    1.6 V/us

  • Slew Rate-Nom:

    2 V/us

  • Supply Current-Max:

    0.3 mA

  • Supply Voltage Limit-Max:

    22 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    2100

  • Voltage Gain-Min:

    25000

  • Wideband:

    NO

  • Width:

    7.62 mm

MC33171N Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4071, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The input capacitor selection depends on the input voltage, output voltage, and output current requirements. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value of 10-22 μF. Additionally, the capacitor's ESR (Equivalent Series Resistance) should be low enough to ensure stable operation.
  • The MC33171N is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's essential to ensure that the device's junction temperature (Tj) does not exceed 150°C to prevent thermal shutdown.
  • The MC33171N has a built-in OVP feature that can be enabled by connecting a resistor between the OVP pin and the input voltage. The OVP threshold voltage can be set by selecting the appropriate resistor value. Additionally, external OVP circuits can be implemented using zener diodes, resistors, and transistors to provide additional protection.
  • The output capacitor value depends on the output voltage, output current, and ripple requirements. A general guideline is to choose a capacitor with a capacitance value of 10-47 μF and a voltage rating of at least 1.5 times the output voltage. The capacitor's ESR should be low enough to ensure stable operation and minimize output voltage ripple.
