MC33174DR2G - onsemi

Description: Large Output Voltage Swing: -14.2 V to +14.2 V (with +/-15 V Supplies); Low Supply Current: 180 µA (Per Amplifier); Output Short Circuit Protection; Excellent Gain Margin: 15 dB; Low Input Offset Voltage: 2.0 mV; Wide Supply Operating Range: 3.0 V to 44 V or +/-1.5 V to +/- 22 V; Wide Input Common Mode Range, Including Ground (VEE); Excellent Phase Margin: 60 C°; ESD Diodes Provide Input Protection for Dual and Quad; High Slew Rate: 2.1 V/µs; Low Total Harmonic Distortion: 0.03%; Wide Bandwidth: 1.8 MHz; La

Download MC33174DR2G Model

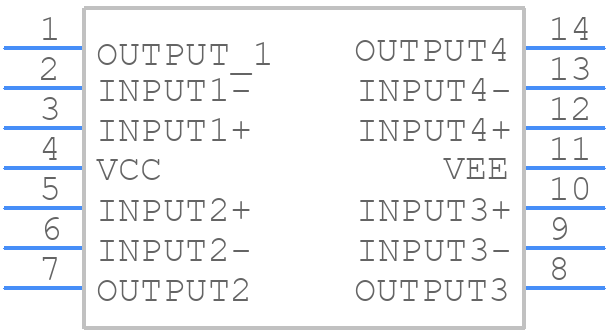

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC33174DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-14
click to zoom
3D Models
MC33174DR2G - onsemi  - 3D model - Small Outline Packages - SOIC-14
click to zoom

MC33174DR2G Details

  • Manufacturer Part Number:

    MC33174DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-14 NB

  • Pin Count:

    14

  • Manufacturer Package Code:

    751A-03

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    4.15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.2 µA

  • Bias Current-Max (IIB) @25C:

    0.1 µA

  • Common-mode Reject Ratio-Min:

    80 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    6500 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -22 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    1.6 V/us

  • Slew Rate-Nom:

    2.1 V/us

  • Supply Current-Max:

    1.2 mA

  • Supply Voltage Limit-Max:

    22 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1800

  • Voltage Gain-Min:

    50000

  • Wideband:

    NO

  • Width:

    3.9 mm
