MC33174VDR2G - onsemi

Description: Large Output Voltage Swing: -14.2 V to +14.2 V (with +/-15 V Supplies); Low Supply Current: 180 µA (Per Amplifier); Output Short Circuit Protection; Excellent Gain Margin: 15 dB; Low Input Offset Voltage: 2.0 mV; Wide Supply Operating Range: 3.0 V to 44 V or +/-1.5 V to +/- 22 V; Wide Input Common Mode Range, Including Ground (VEE); Excellent Phase Margin: 60 C°; ESD Diodes Provide Input Protection for Dual and Quad; High Slew Rate: 2.1 V/µs; Low Total Harmonic Distortion: 0.03%; Wide Bandwidth: 1.8 MHz; La

Download MC33174VDR2G Model

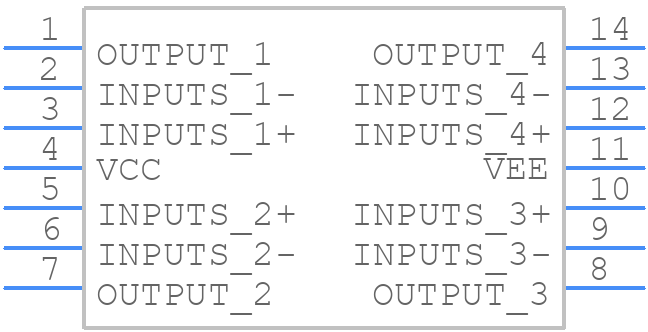

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC33174VDR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-14 NB CASE751A-03 ISSUE L
click to zoom
3D Models
MC33174VDR2G - onsemi  - 3D model - Small Outline Packages - SOIC-14 NB CASE751A-03 ISSUE L
click to zoom

MC33174VDR2G Details

  • Manufacturer Part Number:

    MC33174VDR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-14 NB

  • Pin Count:

    14

  • Manufacturer Package Code:

    751A-03

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    4.15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.2 µA

  • Bias Current-Max (IIB) @25C:

    0.1 µA

  • Common-mode Reject Ratio-Min:

    80 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    6500 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -22 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    1.6 V/us

  • Slew Rate-Nom:

    2.1 V/us

  • Supply Current-Max:

    1.2 mA

  • Supply Voltage Limit-Max:

    22 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1800

  • Voltage Gain-Min:

    50000

  • Wideband:

    NO

  • Width:

    3.9 mm

MC33174VDR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC33174VDR2G involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, ensure that the output capacitor is properly sized and placed close to the device. Also, make sure the input voltage is within the recommended range, and the device is operated within the recommended temperature range. Additionally, a minimum ESR (Equivalent Series Resistance) of 0.1 ohms is recommended for the output capacitor.
  • The MC33174VDR2G is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. Consult the datasheet and thermal management guidelines for more information.
  • Yes, the MC33174VDR2G is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is manufactured using a qualified process. However, additional testing and validation may be required for specific applications.
  • To troubleshoot issues, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, decoupling, and thermal management. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for more troubleshooting guidance.
