MC33178DR2G - onsemi

Description: High Gain Bandwidth: 5.0 MHz; High Slew Rate: 2.0 V/µs; ESD Clamps on the Inputs Increase Ruggedness without Affecting Device Performance; Low T.C. of Input Offset Voltage: 2.0 ?V/°C; Low Total Harmonic Distortion: 0.0024% (@ 1.0 kHz w/600 W Load); Dual Supply Operation: +/-2.0 V to +/-18 V; Large Output Voltage Swing; Low Offset Voltage: 0.15 mV (Mean); 600 W Output Drive Capability

Download MC33178DR2G Model

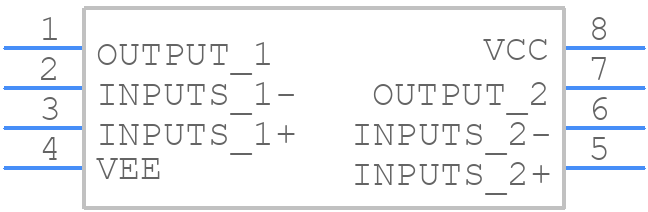

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC33178DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC 8, 150 mils CASE 751BD−01 ISSUE O
click to zoom
3D Models
MC33178DR2G - onsemi  - 3D model - Small Outline Packages - SOIC 8, 150 mils CASE 751BD−01 ISSUE O
click to zoom

MC33178DR2G Details

  • Manufacturer Part Number:

    MC33178DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    4.15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.6 µA

  • Bias Current-Max (IIB) @25C:

    0.5 µA

  • Common-mode Reject Ratio-Min:

    80 dB

  • Common-mode Reject Ratio-Nom:

    110 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    4000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TAPE AND REEL

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    1.2 V/us

  • Slew Rate-Nom:

    2 V/us

  • Supply Current-Max:

    1.6 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    3000

  • Voltage Gain-Min:

    25000

  • Wideband:

    NO

  • Width:

    3.9 mm

MC33178DR2G Frequently Asked Questions (FAQs)

  • A good thermal design should be used to minimize thermal resistance. A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the package can help to dissipate heat efficiently.
  • To ensure stable output voltage regulation, it is recommended to use a minimum output capacitance of 10uF, and to decouple the input with a 1uF capacitor. Additionally, the output voltage should be monitored and adjusted as needed to prevent oscillations.
  • The maximum input voltage that can be applied to the device is 18V. Exceeding this voltage may cause damage to the device.
  • The device has built-in overcurrent protection, but it is still recommended to add external current limiting resistors or fuses to prevent damage from excessive current.
  • The recommended operating temperature range for the device is -40°C to 125°C. Operating the device outside of this range may affect its performance and reliability.
