Part Image

MC33204DR2G - onsemi

Description: No Phase Reversal on the Output for Over-driven Input Signals; High Output Current (ISC = 80 mA, Typ); Typical Gain Bandwidth Product = 2.2 MHz; 600 Ω Output Drive Capability; Low Supply Current (ID = 0.9 mA, Typ); Extended Operating Temperature Ranges (-40° to +105°C and -55° to +125°C); Output Voltage Swings within 50 mV of both Rails; Input Voltage Range Includes both Supply Rails; Low Voltage, Single Supply Operation (+1.8 V and Ground to +12 V and Ground)

Download MC33204DR2G Model

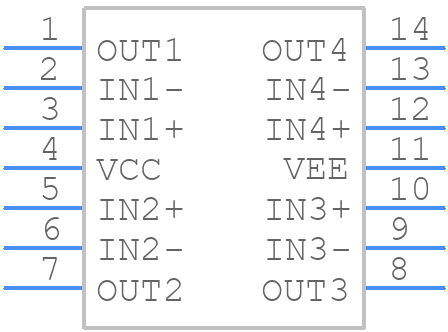

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC33204DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-14 NB CASE751A-03 ISSUE K
click to zoom
3D Models
MC33204DR2G - onsemi  - 3D model - Small Outline Packages - SOIC-14 NB CASE751A-03 ISSUE K
click to zoom

MC33204DR2G Details

  • Manufacturer Part Number:

    MC33204DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-14 NB

  • Package Description:

    SOIC-8

  • Pin Count:

    14

  • Manufacturer Package Code:

    751A-03

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    onsemi

  • YTEOL:

    5.75

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.25 µA

  • Bias Current-Max (IIB) @25C:

    0.2 µA

  • Common-mode Reject Ratio-Min:

    60 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.1 µA

  • Input Offset Voltage-Max:

    13000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    0.5 V/us

  • Slew Rate-Nom:

    1 V/us

  • Supply Current-Max:

    4.5 mA

  • Supply Voltage Limit-Max:

    13 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    2200

  • Voltage Gain-Min:

    25000

  • Wideband:

    NO

  • Width:

    3.9 mm

MC33204DR2G Frequently Asked Questions (FAQs)

  • A good thermal design should be used to minimize thermal resistance. A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. Multiple vias can be used to connect the thermal pad to the copper area.
  • To ensure stability, a minimum output capacitance of 10uF with an ESR of 1 ohm or less is recommended. Additionally, the output capacitor should be placed close to the output pin to minimize parasitic inductance.
  • The maximum input voltage that can be applied to the device is 18V. Exceeding this voltage may cause damage to the device.
  • The device has a built-in overcurrent protection (OCP) feature that limits the output current to a safe level. However, it is still recommended to add external overcurrent protection, such as a fuse or a current-sensing resistor, to prevent damage to the device and the PCB.
  • A 1uF to 10uF ceramic capacitor with an X5R or X7R dielectric is recommended for the input capacitor. This type of capacitor provides a low ESR and is suitable for high-frequency switching applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC33204DR2G Overview

Use the download button to access the MC33204DR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC332, or try a keyword search, such as Operational Amplifiers
