MC33204P - onsemi

Description: Quad op-amp,MC33204P 2.2MHz DIP14

Download MC33204P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

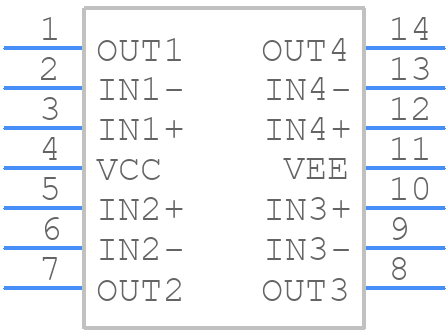

MC33204P - onsemi - PCB symbol
click to zoom
PCB Footprints

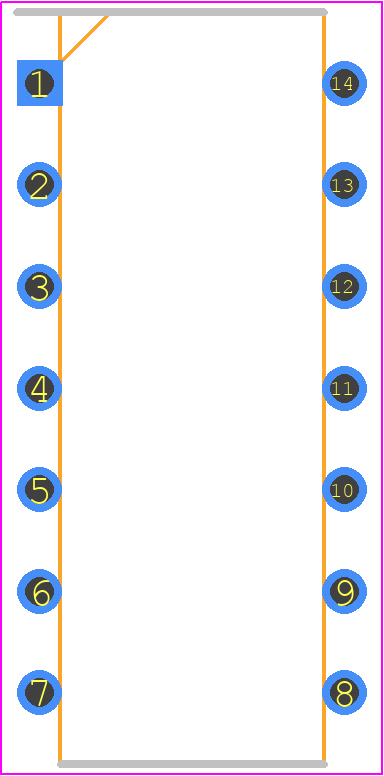

MC33204P - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP - 14 P, VP SUFFIX CASE 646 - 06 ISSUE M
click to zoom
3D Models
MC33204P - onsemi - 3D model - Dual-In-Line Packages - PDIP - 14 P, VP SUFFIX CASE 646 - 06 ISSUE M
click to zoom

MC33204P Details

  • Manufacturer Part Number:

    MC33204P

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-14

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.25 µA

  • Bias Current-Max (IIB) @25C:

    0.2 µA

  • Common-mode Reject Ratio-Min:

    60 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    13000 µV

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e0

  • Length:

    18.48 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    RAIL

  • Peak Reflow Temperature (Cel):

    235

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.69 mm

  • Slew Rate-Min:

    0.5 V/us

  • Slew Rate-Nom:

    1 V/us

  • Supply Current-Max:

    4.5 mA

  • Supply Voltage Limit-Max:

    13 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    2200

  • Voltage Gain-Min:

    25000

  • Wideband:

    NO

  • Width:

    7.62 mm

MC33204P Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC33204P should consider the following: keep the input and output capacitors close to the device, use a solid ground plane, and minimize the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and EMI.
  • The choice of input and output capacitors for the MC33204P depends on the specific application requirements. In general, it's recommended to use low-ESR capacitors with a value of 10uF to 22uF for the input capacitor and 22uF to 47uF for the output capacitor. The capacitor voltage rating should be at least 1.5 times the maximum input voltage.
  • The MC33204P is rated for operation over a temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's recommended to derate the device's performance and consider additional thermal management measures for high-temperature applications.
  • To ensure stability and prevent oscillation, it's recommended to follow the layout guidelines, use the recommended capacitors, and ensure that the input and output voltage rails are well-bypassed. Additionally, the device's compensation pin should be connected to a capacitor and resistor network as specified in the datasheet.
  • The MC33204P is capable of delivering up to 3A of output current. However, the device's thermal performance and reliability may be affected at high output currents. It's recommended to derate the device's performance and consider additional thermal management measures for high-current applications.
