MC33272ADR2G - onsemi

Description: Power Bandwidth: 160 kHz; Unity Gain Stable: w/Capacitance Loads to 500 pF; ESD Diodes Provide Added Protection to the Inputs; Input Offset Voltage Trimmed to 100 µV (Typ); Low Noise: 18 nV/ (sq. root Hz) @ 1.0 kHz; Low Input Bias Current: 300 nA; Single or Split Supply Operation: +3.0 V to +36 V or +/-1.5 V to +/-18 V; Excellent Frequency Stability; Large Output Voltage Swing: +14.1 V/ -14.6 V; Low Total Harmonic Distortion: 0.003%; Low Input Offset Current: 3.0 nA; High Slew Rate: 10 V/µs; High Input Resi

Download MC33272ADR2G Model

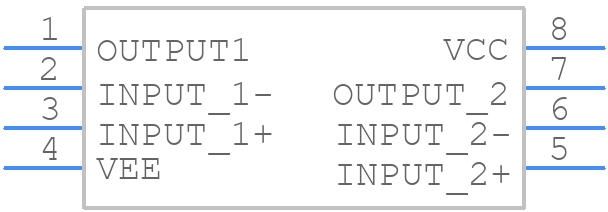

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC33272ADR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom
3D Models
MC33272ADR2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom

MC33272ADR2G Details

  • Manufacturer Part Number:

    MC33272ADR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    onsemi

  • YTEOL:

    4.15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.8 µA

  • Bias Current-Max (IIB) @25C:

    0.65 µA

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    1800 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Offset:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TAPE AND REEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    8 V/us

  • Slew Rate-Nom:

    10 V/us

  • Supply Current-Max:

    6 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    5500

  • Voltage Gain-Min:

    19950

  • Width:

    3.9 mm

MC33272ADR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC33272ADR2G involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and inductance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor is properly sized and placed close to the device. Additionally, a minimum ESR (Equivalent Series Resistance) of 0.1 ohms is recommended for the output capacitor.
  • The MC33272ADR2G is rated for operation from -40°C to 125°C ambient temperature range. However, the device's junction temperature should not exceed 150°C.
  • Yes, the MC33272ADR2G is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is also suitable for industrial and aerospace applications.
  • The power dissipation of the MC33272ADR2G can be calculated using the formula: Pd = (Vin x Iq) + (Io x Vo) + (ΔI x ΔV), where Vin is the input voltage, Iq is the quiescent current, Io is the output current, Vo is the output voltage, ΔI is the current ripple, and ΔV is the voltage ripple.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC33272ADR2G Overview

Use the download button to access the MC33272ADR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC332, or try a keyword search, such as Operational Amplifiers

Parts related to MC33272ADR2G

Showing 0 results

MC33272ADR2G Alternates

Showing results

Image Part Number Model
Part Image MC33272ADG Rochester Electronics LLC

DUAL OP-AMP, 1800uV OFFSET-MAX, 5.5MHz BAND WIDTH, PDSO8, LEAD FREE, SOIC-8

Part Image MC33272ADR2G Rochester Electronics LLC

DUAL OP-AMP, 1800uV OFFSET-MAX, 5.5MHz BAND WIDTH, PDSO8, LEAD-FREE, SOIC-8

Part Image MC33272ADR2 onsemi

Operational Amplifier, 2 Func, 1800uV Offset-Max, BIPolar, PDSO8
