Part Image

MC33274ADR2G - onsemi

Description: Power Bandwidth: 160 kHz; Unity Gain Stable: w/Capacitance Loads to 500 pF; ESD Diodes Provide Added Protection to the Inputs; Input Offset Voltage Trimmed to 100 µV (Typ); Low Noise: 18 nV/ (sq. root Hz) @ 1.0 kHz; Low Input Bias Current: 300 nA; Single or Split Supply Operation: +3.0 V to +36 V or +/-1.5 V to +/-18 V; Excellent Frequency Stability; Large Output Voltage Swing: +14.1 V/ -14.6 V; Low Total Harmonic Distortion: 0.003%; Low Input Offset Current: 3.0 nA; High Slew Rate: 10 V/µs; High Input Resi

Download MC33274ADR2G Model

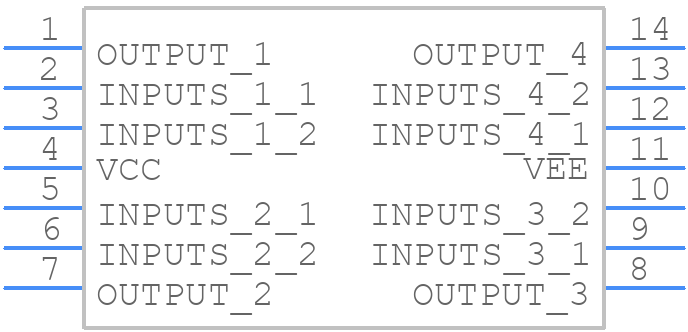

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC33274ADR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-14
click to zoom
3D Models
MC33274ADR2G - onsemi  - 3D model - Small Outline Packages - SOIC-14
click to zoom

MC33274ADR2G Details

  • Manufacturer Part Number:

    MC33274ADR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-14 NB

  • Pin Count:

    14

  • Manufacturer Package Code:

    751A-03

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    onsemi

  • YTEOL:

    4.15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.8 µA

  • Bias Current-Max (IIB) @25C:

    0.65 µA

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    1800 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Low-Offset:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TAPE AND REEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    8 V/us

  • Slew Rate-Nom:

    10 V/us

  • Supply Current-Max:

    12 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    5500

  • Voltage Gain-Min:

    19950

  • Width:

    3.9 mm

MC33274ADR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC33274ADR2G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a shielded inductor and to keep the switching node (pin 5) away from sensitive analog circuits.
  • The inductor value depends on the input voltage, output voltage, and switching frequency. A good starting point is to use the inductor value recommended in the datasheet (e.g., 10uH). Then, adjust the value based on the specific application requirements, such as output current and ripple voltage.
  • The maximum ambient temperature for the MC33274ADR2G is 125°C. However, the device can operate at higher temperatures with derating. It's essential to ensure that the device does not exceed the maximum junction temperature (Tj) of 150°C.
  • Yes, the MC33274ADR2G is suitable for high-reliability applications. It's manufactured using a robust process, and onsemi provides a comprehensive set of reliability data, including FIT rates and MTBF calculations, to support high-reliability designs.
  • To troubleshoot issues with the MC33274ADR2G, start by verifying the PCB layout and component values. Check for proper decoupling, correct inductor value, and adequate input and output capacitance. Use an oscilloscope to measure the switching node and output voltage waveforms. Consult the datasheet and application notes for guidance on troubleshooting common issues.
