The recommended layout and placement for the MC33342DG involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane is also recommended.
To ensure stability, make sure to follow the recommended component values and layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. A minimum of 10uF input capacitance and 22uF output capacitance is recommended.
The MC33342DG can handle a maximum input voltage of 18V, but it's recommended to operate within the 7V to 15V range for optimal performance and reliability.
The MC33342DG is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at higher temperatures to ensure reliability and prevent thermal shutdown.
The output voltage of the MC33342DG can be calculated using the formula: Vout = (1 + R2/R1) * 1.25V, where R1 and R2 are the feedback resistors.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC33342DG Overview

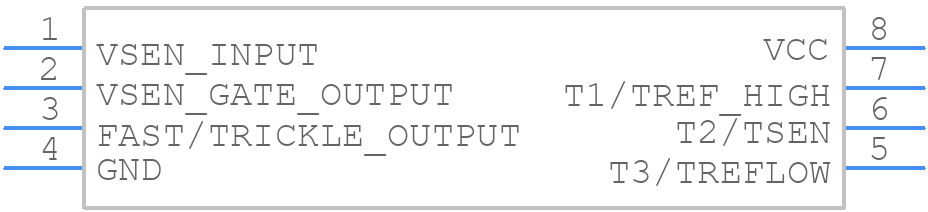

Use the download button to access the MC33342DG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC333,
or try a keyword search, such as Power Management Circuits
