- Part Number MC33662LEF
- Manufacturer NXP
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - MC33662LEF---
- Released Date Mar 20, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MC33662LEF Details
-
Manufacturer Part Number:
MC33662LEF
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Package Description:
4 X 5 MM, 1.27 MM PITCH, ROHS COMPLIANT, SOIC-8
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
26 Weeks
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
1
-
JESD-30 Code:
R-PDSO-G8
-
JESD-609 Code:
e3
MC33662LEF Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-current paths short and use a common ground point for the IC and the power inductor.
-
The inductor value depends on the input voltage, output voltage, and switching frequency. A good starting point is to use the inductor value calculation formula provided in the datasheet, and then adjust based on the specific application requirements.
-
The maximum ambient temperature for the MC33662LEF is 105°C, but it's recommended to derate the device for reliable operation above 85°C.
-
Yes, the MC33662LEF can be used in a synchronous rectification configuration, but it requires additional external components and careful PCB layout to minimize parasitic inductance and ensure proper operation.
-
The MC33662LEF has a built-in overcurrent protection feature. Connect a sense resistor in series with the output inductor and connect the sense resistor to the CS pin. The IC will shut down if the current exceeds the programmed threshold.
Trust Checks
Expert Contribution
System Verified
Community Approved
MC33662LEF Overview

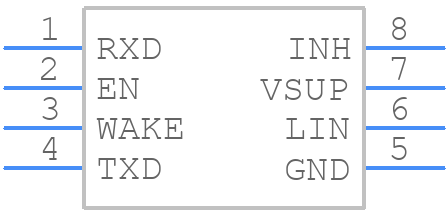

Use the download button to access the MC33662LEF schematic symbol, PCB footprint, and 3D model.
