MC33664ATL1EG - NXP

Description: Interface - Specialized Isolated network high speed transceiver

Download MC33664ATL1EG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

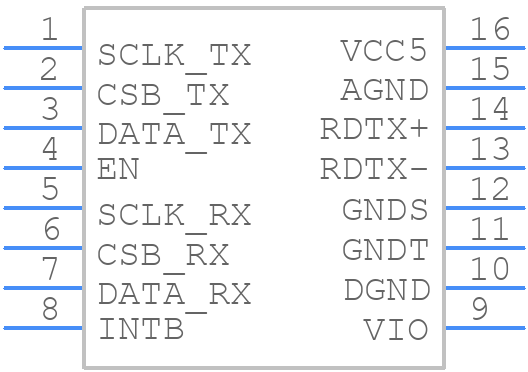

MC33664ATL1EG - NXP - PCB symbol
click to zoom
PCB Footprints
MC33664ATL1EG - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SOT109-5 (SO16)_2020
click to zoom
3D Models
MC33664ATL1EG - NXP - 3D model - Small Outline Packages - SOT109-5 (SO16)_2020
click to zoom

MC33664ATL1EG Details

  • Manufacturer Part Number:

    MC33664ATL1EG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    6

  • Data Rate:

    2000 Mbps

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    70 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

MC33664ATL1EG Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC33664ATL1EG involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper power supply, use a high-quality voltage regulator with low output impedance and a low dropout voltage. The input voltage should be filtered using a ferrite bead or a pi-filter to reduce noise. Also, ensure that the power supply can provide the required current.
  • The recommended clock frequency for the MC33664ATL1EG is 16 MHz, but it can operate at frequencies up to 20 MHz. However, the clock frequency should be chosen based on the specific application requirements and the system's noise tolerance.
  • To configure the MC33664ATL1EG for low-power operation, use the Power Save Mode (PSM) feature, which reduces the device's power consumption. Additionally, use the clock gating feature to disable the clock signal to unused modules, and use the dynamic voltage and frequency scaling (DVFS) feature to optimize power consumption.
  • The maximum operating temperature range for the MC33664ATL1EG is -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's essential to ensure proper thermal management and heat dissipation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC33664ATL1EG Overview

Use the download button to access the MC33664ATL1EG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC336, or try a keyword search, such as Network Interfaces

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
