- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MC33797BPEW
- Part Number MC33797BPEW
- Manufacturer NXP
- Pin Count 32
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SOT1762-1
- Released Date Jul 5, 2023
- Last Modified Date Jul 6, 2023 6:25 AM UTC
- Pinout / Pin List Click Here (Member Only)
MC33797BPEW Details
-
Manufacturer Part Number:
MC33797BPEW
-
Rohs Code:
Yes
-
Part Life Cycle Code:
End Of Life
-
Package Description:
SOIC-32
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
Factory Lead Time:
12 Weeks
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
1
-
Interface IC Type:
INTERFACE CIRCUIT
-
JESD-30 Code:
R-PDSO-G32
MC33797BPEW Frequently Asked Questions (FAQs)
-
NXP provides a recommended PCB layout in the application note AN4869, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
-
The MC33797BPEW has a low-power mode that can be enabled by setting the EN pin low. Additionally, the device can be configured for low-power mode by programming the registers through the I2C interface. Refer to the datasheet section 10.3 for more information.
-
The maximum current rating for the output stages is 1.5A per channel. However, the actual current capability may be limited by the PCB design, thermal performance, and other system-level factors. It's essential to perform thermal analysis and simulation to ensure the device operates within its safe operating area.
-
The MC33797BPEW is rated for operation up to 150°C. However, the device's performance and reliability may degrade at high temperatures. It's crucial to perform thermal analysis and consider the device's thermal derating when operating in high-temperature environments.
-
To troubleshoot I2C interface issues, check the I2C bus voltage levels, clock frequency, and signal integrity. Ensure that the I2C bus is properly terminated, and the device is properly addressed. Use an oscilloscope or logic analyzer to debug the I2C communication. Refer to the datasheet section 9.3 for more information.
Trust Checks
Community Provided
System Verified
Community Approved
MC33797BPEW Overview

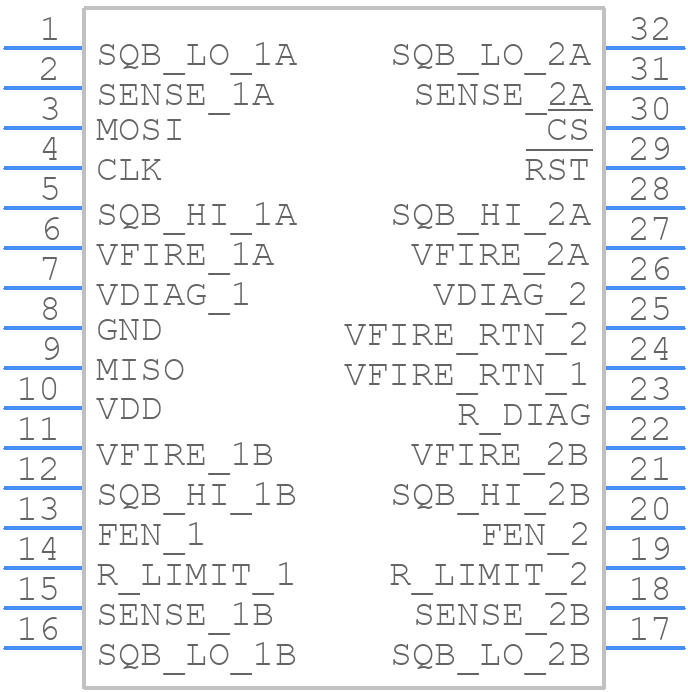

Use the download button to access the MC33797BPEW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC337,
or try a keyword search, such as Other Interface ICs
