- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MC33813AER2
- Part Number MC33813AER2
- Manufacturer NXP
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Quad Flat Packages
- Footprint Name Quad Flat Packages - MC33813AER2--+
- Released Date May 6, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MC33813AER2 Details
-
Manufacturer Part Number:
MC33813AER2
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
6
-
Analog IC - Other Type:
ANALOG CIRCUIT
-
JESD-609 Code:
e3
-
Moisture Sensitivity Level:
3
MC33813AER2 Frequently Asked Questions (FAQs)
-
NXP provides a recommended PCB layout in the MC33813AER2 application note (AN4836) which includes guidelines for component placement, thermal management, and routing to ensure optimal performance and minimize electromagnetic interference (EMI).
-
The selection of the inductor depends on the specific application requirements, such as the output voltage, current, and switching frequency. NXP provides a list of recommended inductors in the datasheet, and also offers an inductor selection tool on their website to help engineers choose the right inductor for their design.
-
The maximum ambient temperature for the MC33813AER2 is 105°C, but it can be derated to 85°C for automotive applications. It's essential to ensure proper thermal management and heat sinking to prevent overheating and ensure reliable operation.
-
The MC33813AER2 is designed for low-voltage applications up to 18V. For high-voltage applications, NXP recommends using a different device, such as the MC33913, which is designed for high-voltage applications up to 40V.
-
The MC33813AER2 has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The datasheet provides a detailed description of the overcurrent protection circuit and the calculation for the resistor and capacitor values.
Trust Checks
Community Provided
System Verified
Community Approved
MC33813AER2 Overview

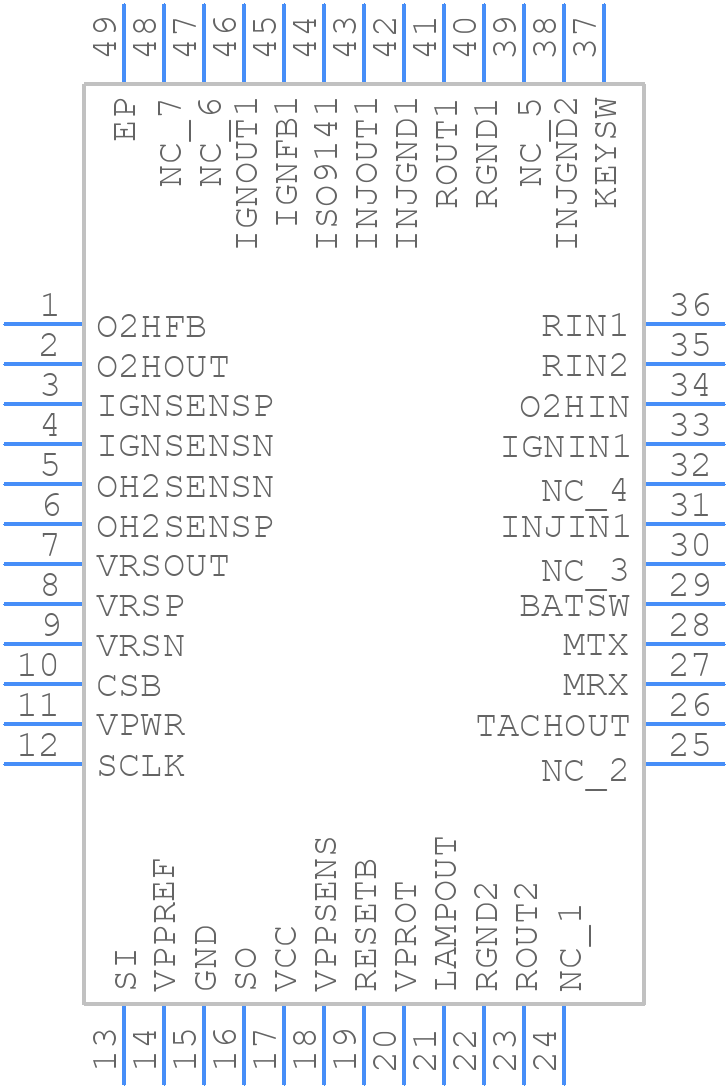

Use the download button to access the MC33813AER2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC338,
or try a keyword search, such as Other Signal Circuits
