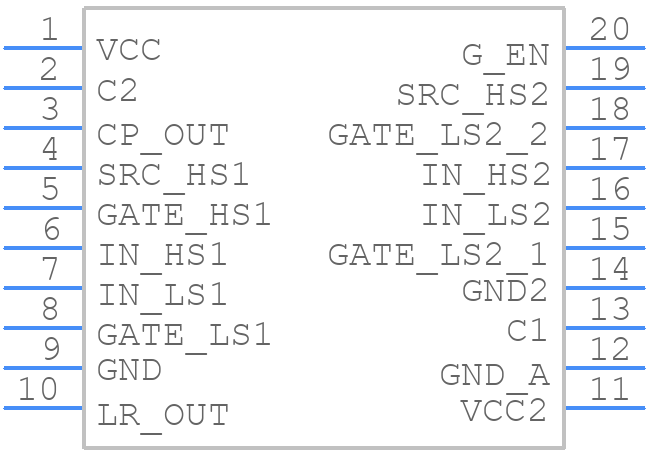

MC33883HEGR2 - NXP

MC33883HEGR2 Details

• Manufacturer Part Number:

  MC33883HEGR2

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  SOIC-20

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  0

• Additional Feature:

  ALSO REQUIRED 5.5V TO 28V

• High Side Driver:

  YES

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  FULL BRIDGE BASED MOSFET DRIVER

• JESD-30 Code:

  R-PDSO-G20

• JESD-609 Code:

  e3

• Length:

  12.8 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  STANDARD

• Output Peak Current Limit-Nom:

  1 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  2.65 mm

• Supply Current-Max:

  5 mA

• Supply Voltage-Max:

  55 V

• Supply Voltage-Min:

  5.5 V

• Supply Voltage-Nom:

  12 V

• Supply Voltage1-Max:

  28 V

• Supply Voltage1-Min:

  5.5 V

• Supply Voltage1-Nom:

  12 V

• Surface Mount:

  YES

• Technology:

  MOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  40

• Turn-off Time:

  0.18 µs

• Turn-on Time:

  0.18 µs

• Width:

  7.5 mm
