MC33907NAE - NXP

Description: Power Management Specialized - PMIC 5V 0.7A VCORE QFP 48

Download MC33907NAE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

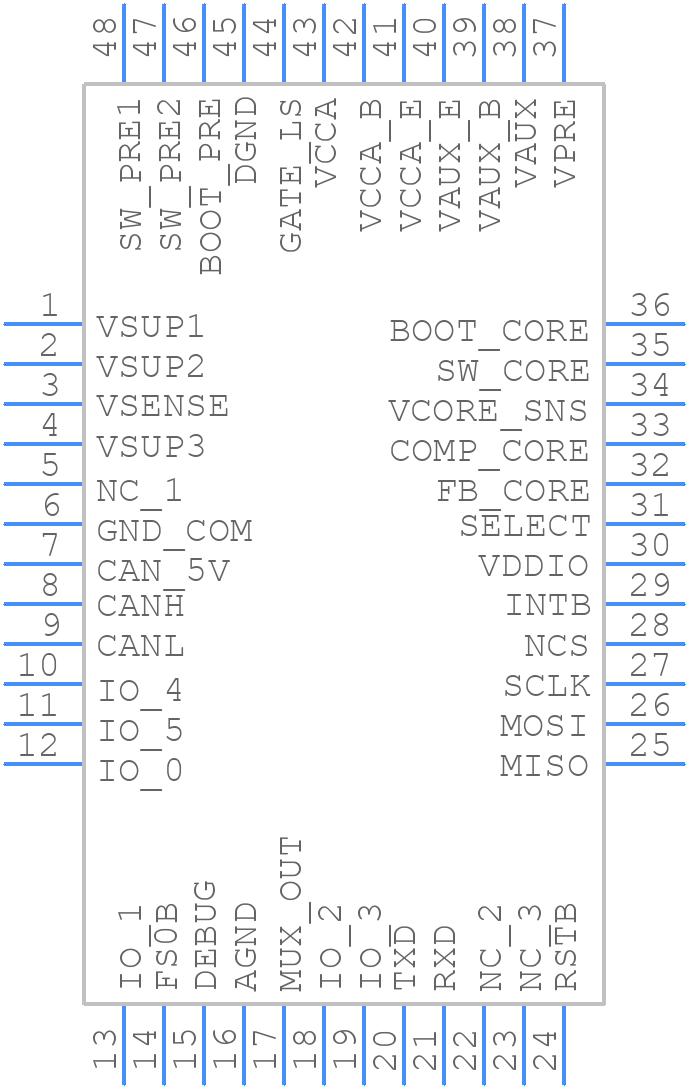

Symbol
MC33907NAE - NXP - PCB symbol
click to zoom
PCB Footprints
MC33907NAE - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP, 48 LEAD, 0.5 PITCH (7.0 x 7.0 x 1.4)
click to zoom
3D Models
MC33907NAE - NXP - 3D model - Quad Flat Packages - LQFP, 48 LEAD, 0.5 PITCH (7.0 x 7.0 x 1.4)
click to zoom

MC33907NAE Details

  • Manufacturer Part Number:

    MC33907NAE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    7 X 7 MM, 1.40 MM HEIGHT, 0.50 MM PITCH, ROHS COMPLIANT, MS-026BBC, LQFP-48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5.13

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.6 mm

  • Surface Mount:

    YES

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7 mm

MC33907NAE Frequently Asked Questions (FAQs)

  • The maximum current rating of the MC33907NAE is 5A per channel, with a maximum total current of 10A.
  • The MC33907NAE can be configured for high-side or low-side switching by connecting the VCC pin to the desired voltage rail and configuring the EN pin accordingly. Refer to the application note AN4836 for more details.
  • The diagnostic pins (nD1 and nD2) provide fault detection and diagnostic information, such as overcurrent, overtemperature, and undervoltage detection.
  • The MC33907NAE has a built-in overcurrent protection feature that can be enabled by connecting a sense resistor to the IS pin. The device will limit the current to the programmed value when an overcurrent condition is detected.
  • The minimum input voltage required for the MC33907NAE to operate is 5.5V, although it can operate down to 4.5V with reduced performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC33907NAE Overview

Use the download button to access the MC33907NAE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC339, or try a keyword search, such as Network Interfaces

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
