MC33931EK - NXP

Description: Motor / Motion / Ignition Controllers & Drivers 5A H-BRIDGE

Download MC33931EK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

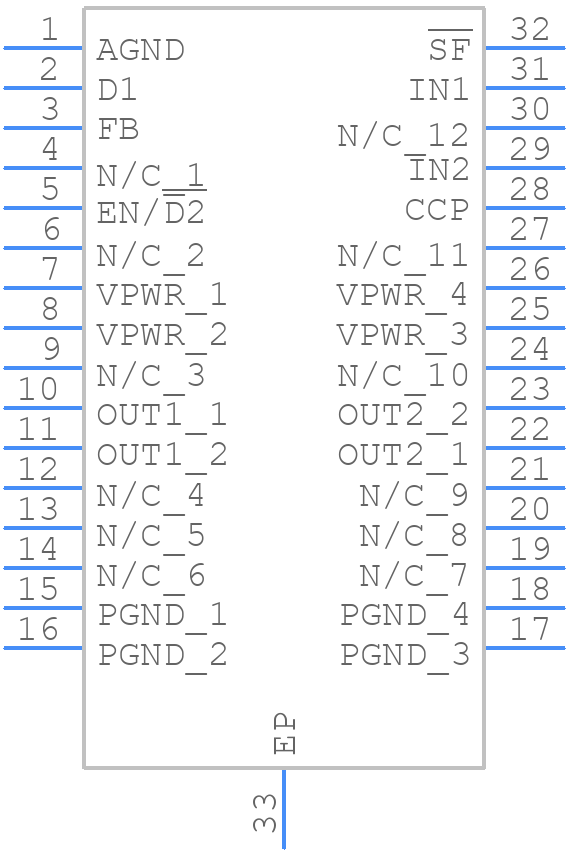

MC33931EK - NXP - PCB symbol
click to zoom
PCB Footprints
MC33931EK - NXP PCB footprint - Small Outline Packages - Small Outline Packages - 32lead soic ep
click to zoom
3D Models
MC33931EK - NXP - 3D model - Small Outline Packages - 32lead soic ep
click to zoom

MC33931EK Details

  • Manufacturer Part Number:

    MC33931EK

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5.05

  • Interface IC Type:

    HALF BRIDGE BASED PERIPHERAL DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Terminal Finish:

    Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    40

MC33931EK Frequently Asked Questions (FAQs)

  • The maximum current rating of the MC33931EK is 5A per channel, with a maximum total current of 10A.
  • The MC33931EK can be configured for high-side or low-side switching by connecting the VCC pin to the desired voltage rail and configuring the EN pin accordingly. Refer to the application note AN4836 for more details.
  • The diagnostic pins (nD1 and nD2) on the MC33931EK provide fault detection and diagnostic capabilities, such as overcurrent, overtemperature, and undervoltage detection.
  • The MC33931EK has built-in overcurrent protection, which can be enabled by connecting a sense resistor to the IS pin and configuring the OC pin accordingly. Refer to the datasheet for more details.
  • The operating temperature range of the MC33931EK is -40°C to 125°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC33931EK Overview

Use the download button to access the MC33931EK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC339, or try a keyword search, such as Peripheral Drivers

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
