MC33999EK - NXP

Description: POWER DUAL OCTAL SERIAL SWITCH WITH SERIAL PERIPHERAL INTERFACE I/O

Download MC33999EK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MC33999EK - NXP - PCB symbol
click to zoom
PCB Footprints

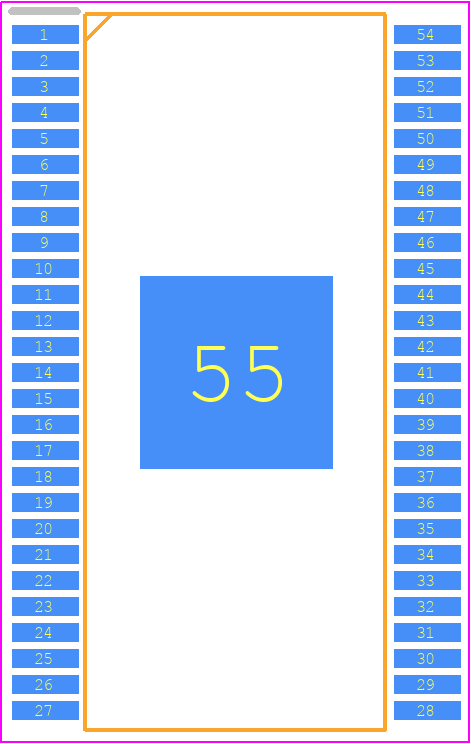

MC33999EK - NXP PCB footprint - Small Outline Packages - Small Outline Packages - MC33999EK
click to zoom
3D Models
MC33999EK - NXP - 3D model - Small Outline Packages - MC33999EK
click to zoom

MC33999EK Details

  • Manufacturer Part Number:

    MC33999EK

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    0.65 MM PITCH, LEAD FREE, PLASTIC, SOIC-54

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    SIPO BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G54

  • JESD-609 Code:

    e3

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    2A

  • Number of Functions:

    1

  • Number of Terminals:

    54

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    1.2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP54,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.45 mm

  • Supply Voltage-Max:

    27 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Technology:

    BCDMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    10 µs

  • Turn-on Time:

    10 µs

  • Width:

    7.5 mm

MC33999EK Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the MC33999EK application note (AN4831) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
  • The MC33999EK has a low-power mode that can be enabled by setting the EN pin low. Additionally, the device can be configured to enter a low-power state by setting the SLEEP pin high. Refer to the datasheet for specific timing and voltage requirements.
  • The internal voltage regulator of the MC33999EK is capable of delivering up to 150 mA of current. However, it's recommended to limit the current to 100 mA to ensure reliable operation and to prevent overheating.
  • The MC33999EK is designed to operate with a 3.3V or 3.0V power supply. While it may be possible to use it with a 5V power supply, it's not recommended as it may exceed the maximum voltage rating of the device and reduce its reliability.
  • NXP provides a troubleshooting guide in the MC33999EK application note (AN4831) that covers common issues with the communication interface, such as bus contention, clock stretching, and data corruption. Additionally, using a logic analyzer or oscilloscope can help identify issues with the signal timing and protocol.
