MC33PT2001MAE - NXP

Description: Solenoid Controller PMIC 64-HLQFP (10x10) , SOT1510-1 , 0V ~ 72V , -40°C ~ 125°C (TA)

Download MC33PT2001MAE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MC33PT2001MAE - NXP - PCB symbol
click to zoom

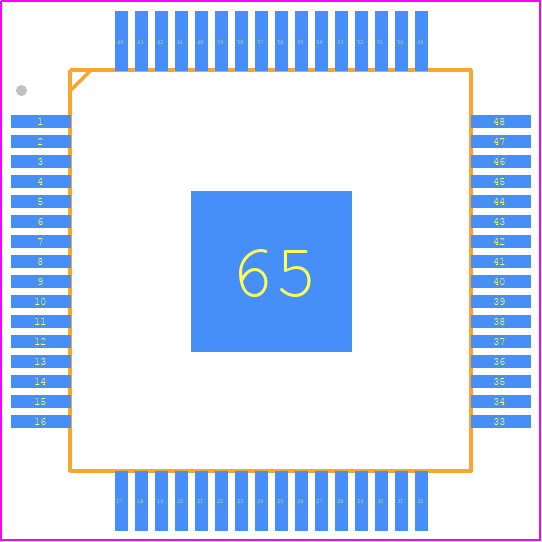

PCB Footprints
MC33PT2001MAE - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - SOT1510-1_2026
click to zoom
3D Models
MC33PT2001MAE - NXP - 3D model - Quad Flat Packages - SOT1510-1_2026
click to zoom

MC33PT2001MAE Details

  • Manufacturer Part Number:

    MC33PT2001MAE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HLQFP-64

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2019-05-14

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • High Side Driver:

    YES

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PQFP-G64

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    TQFP64,.47SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.6 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    10 mm

MC33PT2001MAE Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN12213, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The MC33PT2001MAE has a programmable output voltage setting through the I2C interface. The device can be configured using the NXP-provided software development kit (SDK) or by writing custom code to set the desired output voltage. Refer to the device's programming guide for more information.
  • While the datasheet specifies a maximum input voltage of 5.5V, it's essential to note that the device can handle input voltages up to 6.5V for short durations (e.g., during power-up or voltage transients). However, sustained operation above 5.5V may affect the device's reliability and lifespan.
  • To ensure optimal thermal performance, follow the recommended PCB layout guidelines, use a sufficient heat sink, and ensure good airflow around the device. Additionally, monitor the device's temperature using the built-in thermal monitoring feature and adjust the system design accordingly to prevent overheating.
  • The MC33PT2001MAE is rated for operation up to 125°C. However, high-temperature operation can affect the device's performance, efficiency, and lifespan. Consult the datasheet and application notes for guidance on derating the device's performance and ensuring reliable operation in high-temperature environments.
